Manufacturer Part #
2058703-1

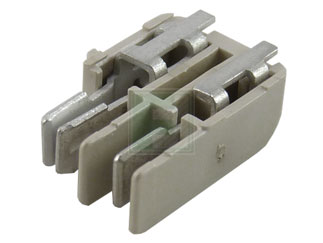

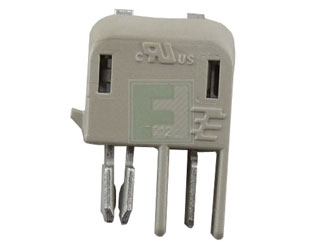

2 Position 1 Row 4 mm Hermaphroditic Blade And Receptacle Housing Connector
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:1000 per Box |
||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 2058703-1 - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
N/A
HTS Code:
N/A
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2058703-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/2058703-1-te-connectivity-3613197
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2058703-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/2058703-1-te-connectivity-3613197
TE Connectivity 2058703-1 - Technical Attributes
Attributes Table
| No of Positions: | 2 |
| No of Rows: | 1 |
| Pitch: | 4 mm |
| Style/Orientation: | Plug - Receptacle |
| Termination: | Surface Mount |
| Operating Temp Range: | -40°C to +105°C |
| Voltage Rating: | 125V |
| Current Rating: | 6A |
| Contact Material: | Copper Alloy |
| Contact Plating: | Tin |
| Material: | Thermoplastic |
| Gender: | Male |
| Mating Type: | Push - Pull |
| Color: | Natural |
| Insulation Resistance: | 1MΩ |
Features & Applications
The 2058703-1 is a Hermaphroditic Blade and Receptacle Surface Mount Board-to-Board Connector with 2 Position and 1 Row.
Features:
- Product Type = Connector
- Connector Type = Housing
- Termination Method to PC Board = Surface Mount
- Mount Angle = Right Angle
- Tail Plating Material = Matte Tin-Lead over Nickel
- Tail Plating, Thickness (µm [μin]) = 5 [191.85]
- Contact Type = Blade/Socket
- Contact Plating, Mating Area, Material = Matte Tin
- Contact Plating, Mating Area, Thickness (µm [μin]) = 5 [196.85]
- Connector Style = Hermaphroditic
- Application Use = Board-to-Board
- Number of Positions = 2
- Number of Rows = 1
- Length (X-Axis) (mm [in]) = 12.25 [0.482]
- Width (Z-Axis) (mm [in]) = 7.90 [0.311]
- Profile Height (Y-Axis) (mm [in]) = 4.13 [0.163]
- Post-Mating Assembly Measurement (mm [in]) = 7.5 [0.295]
- Operating Temperature (°C [°F]) = -40 – +105 [-40 – +221]
- Lighting Interconnect Level = Level 2
- SMT Soldering Temperature (°C [°F]) = 260 [500]
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
33 Weeks
Quantity
Unit Price
12,000+
$0.56
Product Variant Information section
Available Packaging
Package Qty:
1000 per Box
