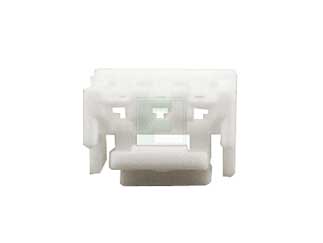

JST | GHR-03V-S

Manufacturer Part #

GHR-03V-S

1.25 mm Pitch 3 Position Single Row Wire to Board Connector Housing

ECAD Model:
Mfr. Name: JST
Standard Pkg:
Product Variant Information section
Date Code: 2523
Product Specification Section
JST GHR-03V-S - Technical Attributes
Attributes Table
Type: Wire to Board
No of Positions: 3
Pitch: 1.25 mm
Style/Orientation: Free Hanging Socket/Receptacle
Termination: Crimp
Features & Applications

The GHR-03V-S is a part of GH series 3 position 1.25 mm pitch single row wire to board connector housing. It has an operating temperature ranging from -25°C to +85°C.

Features:

  • Current rating: 1 A AC, DC
  • Voltage rate: 50V AC, DC
  • Contact resistance: Initial value/30mO max
  • Insulation resistance: 100 MO min
  • Withstanding voltage: 500 V AC/minute
  • Applicable wire: AWG#30 to #26
  • Secure locking structure
  • Contact lock structure
  • Prevent deformation of contacts

View the available GH series of wire to board connector

Pricing Section
Global Stock:
8,800
USA:
8,800
On Order:Order inventroy details
8,800
Factory Stock:Factory Stock:
0
Factory Lead Time:
16 Weeks
Minimum Order:
1
Multiple Of:
1
Total
$0.05
USD
Quantity
Unit Price
1
$0.0461
500
$0.0451
2,000
$0.0436
5,000
$0.0427
20,000+
$0.0403
