Manufacturer Part #
SHDR-30V-S-B

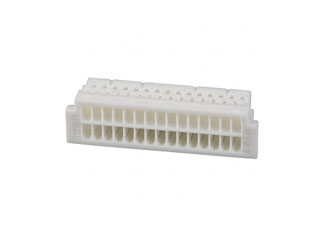

SHD Series 30 Position 1mm White Connector Housing
| | |||||||||||
| | |||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:4000 per Reel | ||||||||||
| Date Code: | 2509 | ||||||||||
Product Specification Section
JST SHDR-30V-S-B - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SHDR-30V-S-B&field4=JST&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--socket-plug-wire-mount/shdr-30v-s-b-jst-6013368
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SHDR-30V-S-B&field4=JST&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--socket-plug-wire-mount/shdr-30v-s-b-jst-6013368
Features & Applications
The SHDR-30V-S-B is a part of SHD Series 30 Position 1 mm White Connector Housing.
Features:
- Compact, low profile design
- Anti-misinsertion feature
- Receptacles with protrusions
- Header designed for vaccum pick and place robotics
Product Specifications:
- Pitch: 1.0 mm
- Current rating: 1.0 A
- Voltage rating: 50 V
- Temperature range: -25°C to +85°C
- Insulation resistance: 100 M?
Pricing Section
Global Stock:
4,000
USA:
4,000
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
4,000
$0.126
8,000
$0.125
12,000
$0.124
16,000+
$0.123
Product Variant Information section
Available Packaging
Package Qty:
4000 per Reel
