Manufacturer Part #
DGD0216WT-7

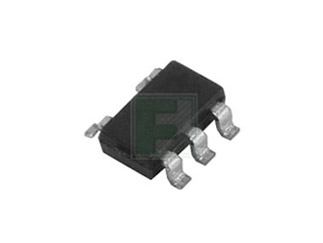

Low-Side Gate Driver IC Inverting, Non-Inverting TSOT-25
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Diodes Incorporated | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:TSOT-23-5 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Diodes Incorporated DGD0216WT-7 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=DGD0216WT-7&field4=Diodes Incorporated&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--motor-drivers/dgd0216wt-7-diodes-incorporated-8134247
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=DGD0216WT-7&field4=Diodes Incorporated&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--motor-drivers/dgd0216wt-7-diodes-incorporated-8134247
Diodes Incorporated DGD0216WT-7 - Technical Attributes
Attributes Table
| No of Outputs: | Single |
| Output Current-Max: | 1.9A |
| Supply Current: | 50µA |
| Rated Power Dissipation: | 0.54W |
| Supply Voltage-Max: | 18V |
| Supply Voltage: | 4.5V to 18V |
| Fall Time: | 15ns |
| Rise Time: | 15ns |
| Turn-off Delay Time: | 55ns |
| Turn-on Delay Time: | 50ns |
| Interface: | CMOS |
| Operating Temp Range: | -40°C to +125°C |
| Package Style: | TSOT-23-5 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
3,000
$0.255
6,000
$0.25
15,000+
$0.245
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
TSOT-23-5
Mounting Method:
Surface Mount
