Manufacturer Part #
PWD13F60

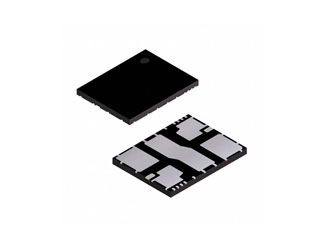

Smart Driver with integrated high voltage Full Bridge VFQFPN 10x13x1.0
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:816 per Tray Package Style:VFQFPN-28 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2433 | ||||||||||
Product Specification Section
STMicroelectronics PWD13F60 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PWD13F60&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--motor-drivers/pwd13f60-stmicroelectronics-2080104
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PWD13F60&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--motor-drivers/pwd13f60-stmicroelectronics-2080104
STMicroelectronics PWD13F60 - Technical Attributes
Attributes Table
| Motor Type: | Half Bridge |
| Load Voltage: | 600V |
| No of Outputs: | Dual |
| Output Current-Max: | 8A |
| Supply Current: | 270µA |
| Rated Power Dissipation: | 6.9W |
| Supply Voltage-Max: | 19V |
| Supply Voltage: | 6.5V to 19V |
| Operating Temp Range: | -40°C to +125°C |
| Package Style: | VFQFPN-28 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
816
USA:
816
On Order:
0
Factory Lead Time:
30 Weeks
Quantity
Unit Price
816+
$6.35
Product Variant Information section
Available Packaging
Package Qty:
816 per Tray
Package Style:
VFQFPN-28
Mounting Method:
Surface Mount
