onsemi | NSVBAV70TT1G

Manufacturer Part #

NSVBAV70TT1G

DUAL SWITCHING DIODE

ECAD Model:
Mfr. Name: onsemi
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
onsemi NSVBAV70TT1G - Technical Attributes
Attributes Table
Type: Standard
Configuration: Dual
Reverse Current-Max: 1µA
Forward Voltage: 1V
Reverse Voltage-Max [Vrrm]: 100V
Reverse Recovery Time-Max: 6ns
Power Dissipation: 0.36W to 0.225W
Diode Capacitance-Max: 1.5pF
Average Forward Current-Max: 0.1A
Peak Current-Max: 0.5A
Operating Temp Range: -55°C to +150°C

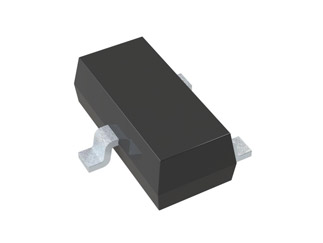

Package Style:  SC-75
Mounting Method: Surface Mount
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
31 Weeks
Minimum Order:
33000
Multiple Of:
3000
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$679.80
USD
Quantity
Unit Price
3,000
$0.0214
9,000
$0.0208
15,000
$0.0206
45,000
$0.0201
75,000+
$0.0197
