Manufacturer Part #
553 Series Yellow 3 mm 60° 1.6 mcd 2 mA 1.8 V LED Circuit Board Inductor
Pls make note of the new time frame in regards to PCN 55524 / Dialight has moved the date from June to second and third week of July 2019. All government approvals have been made however construction is moving slower than originally expected.Description of Change: Moving the existing facility in Penang,Malaysia to a new larger expanded facility in Penang, Malaysia 6km away. There will be no change to current BOMs,standard operating procedures or equipment. The new site will be fully qualified by Dialight Operations,Engineering and Quality teams. Reason for Change: Move to new expanded facility 6km away required to provide improved effiencies and increased capacity to better support customer demands. Provide added space for the addition of lighting fixture assembly to support the Region and Australia.
Description of Change:Moving the existing facility in Penang,Malaysia to a new larger expanded facility in Penang, Malaysia 6km away. There will be no change to current BOMs,standard operating procedures or equipment. The new site will be fully qualified by Dialight Operations,Engineering and Quality teams. Product is form, fit, function and reliability the same with only a facility move to a larger Penang, Malaysia Site.
Description of change: Transfer the part numbers of 550,551,553 built in Roxboro NC USA to the Dialight, Penang Malaysia Facility. Reason for change: To eliminate the reliance on the automatic machines in Roxboro NC that are 20 years old and require major constant repairs. The Malaysia facility already builds these products as well on semi-automatic flow lines and capacity is available. Penang�s capacityload was studied prior to making the decision to move the Roxboro production and it was determined that the Penang facility hassufficient manufacturing capacity to absorb the Roxboro production. Penang already molds the housings for these part numbers.Disposition of Old Product:Deplete P/Ns of product in stock and built in USA within a 3 month timeframe. Then build in Dialight Penang in Malaysia.Expected Implementation Date: 06/29/2018Last Time Buy Date: 04/30/2018
|No of LEDs:||2|
|Forward (Drive) Current:||2mA|
|Operating Temp Range:||-40°C to +100°C|
|Storage Temperature Range:||-55°C to +100°C|
|Dimension:||H 9.65mm x L 10.73mm x W 4.32mm|
|Mounting Method:||Through Hole|
Features & Applications

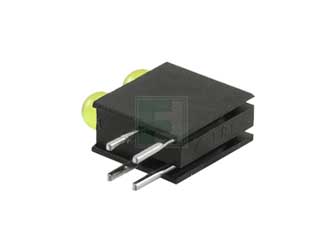

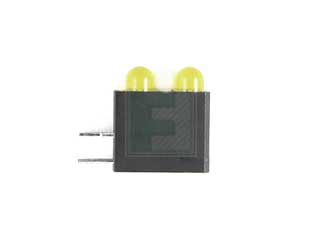

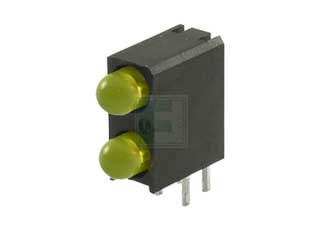

The 553-0233F is a 3 mm diameter BI-level housing right angle (yellow) color LED circuit board indicator with tinted diffused lens.
- Multiple CBIs form horizontal LED arrays on 5.08mm (0.200”) center-lines.
- High Contrast, UL 94 V-0 rated, black housing
- Oxygen index: 32%
- Polymer content: PBT, 0.405 g
- Housing stand-offs facilitate PCB cleaning
- Solderability per MIL-STD-202F, method 208F
- LEDs are safe for direct viewing per IEC 825-1, EN-60825-1
- Compatible with:
- 553-xxxx-306 Bi-Level Array
- Home appliances
