Référence fabricant
ZXT13N50DE6TA

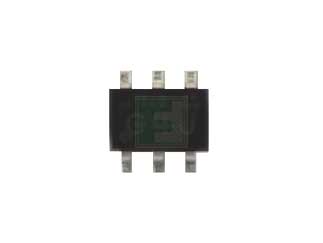

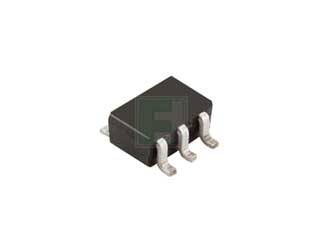

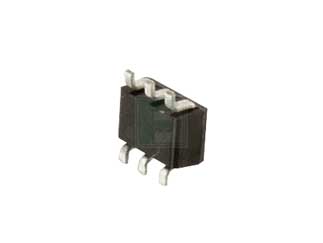

ZXT13N50DE6 Series NPN 4 A 50 V SMT Silicon Low Saturation Transistor - SOT-23-6
| | |||||||||||
| | |||||||||||
| Nom du fabricant: | Diodes Incorporated | ||||||||||
| Emballage standard: | Product Variant Information section Emballages disponiblesQté d'emballage(s) :3000 par Reel Style d'emballage :SOT-23-6 (SOT-26) Méthode de montage :Surface Mount | ||||||||||
| Code de date: | |||||||||||
Diodes Incorporated ZXT13N50DE6TA - Spécifications du produit
Informations de livraison:
ECCN:
Informations PCN:
*Update to Future PCN 40708*REV01: 1) Clarified part marking diagrams for SM-8 devices, and SOT26 device (P/N DRDC3105E6-7 only)2) Adding two affected part numbers: ZHCS2000TA and ZLLS2000TA (both in SOT-26 package)In order to improve product traceability, Diodes will add date code information to the part marking of part numbers. Affected products are manufactured in SM-8, SOT-26 or SOT-223 packages at Diodes’ internal Assembly & Test sites. There is no change to fit or function of the affected products.
Addition of Date Code Information to Part MarkingIn order to improve product traceability, Diodes will add date code information to the part marking of below listed part numbers.Affected products are manufactured in SM-8, SOT-26 or SOT-223 packages at Diodes’ internal Assembly & Test sites.There is no change to fit or function of the affected products.
Statut du produit:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=ZXT13N50DE6TA&field4=Diodes Incorporated&field18=https://p1na.futureelectronics.com/fr/p/semiconductors--discretes--transistors--bipolar-transistors/zxt13n50de6ta-diodes-incorporated-6105571
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=ZXT13N50DE6TA&field4=Diodes Incorporated&field18=https://p1na.futureelectronics.com/fr/p/semiconductors--discretes--transistors--bipolar-transistors/zxt13n50de6ta-diodes-incorporated-6105571
Diodes Incorporated ZXT13N50DE6TA - Caractéristiques techniques
| Polarity: | NPN |
| CE Voltage-Max: | 50V |
| Collector Current Max: | 4000mA |
| Power Dissipation-Tot: | 1.1W |
| Style d'emballage : | SOT-23-6 (SOT-26) |
| Méthode de montage : | Surface Mount |
Fonctionnalités et applications
The ZXT13N50DE6TA is a NPN Silicon low saturation switching transistor with 50 V Collector to Emitter voltage.
Features:
- Extremely Low Equivalent On Resistance
- Extremely Low Saturation Voltage
- hFE characterised up to 10 A
- IC=4 A Continuous Collector Current
- SOT23-6 package
Applications:
- DC - DC Converters
- Power Management Functions
- Power switches
- Motor control
View the List of available ZXT13 Series of Transistors
Emballages disponibles
Qté d'emballage(s) :
3000 par Reel
Style d'emballage :
SOT-23-6 (SOT-26)
Méthode de montage :
Surface Mount
