Manufacturer Part #
D3V3M1U2S9-7

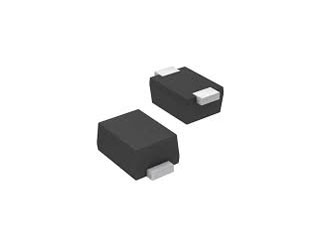

TVS DIODE 3.3V 10V SOD923
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Diodes Incorporated | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:10000 per Reel Package Style:SOD-923 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2527 | ||||||||||
Product Specification Section
Diodes Incorporated D3V3M1U2S9-7 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=D3V3M1U2S9-7&field4=Diodes Incorporated&field18=https://p1apac.futureelectronics.com/p/electromechanical--circuit-protection--tvs-diodes/d3v3m1u2s9-7-diodes-incorporated-5114074
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=D3V3M1U2S9-7&field4=Diodes Incorporated&field18=https://p1apac.futureelectronics.com/p/electromechanical--circuit-protection--tvs-diodes/d3v3m1u2s9-7-diodes-incorporated-5114074
Diodes Incorporated D3V3M1U2S9-7 - Technical Attributes
Attributes Table
| Breakdown Voltage-Min: | 5V |
| Clamping Voltage-Max: | 10V |
| Directional: | Uni-Directional |
| Power Dissipation: | 250mW |
| Peak Output Current: | 12A |
| Reverse Leakage Current: | 2µA |
| Standoff Voltage: | 3.3V |
| Operating Temp Range: | -65°C to +150°C |
| Storage Temperature Range: | -65°C to +150°C |
| Capacitance: | 70pF |
| Package Style: | SOD-923 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
10,000
$0.0255
20,000
$0.0252
40,000
$0.0248
50,000
$0.0247
150,000+
$0.0239
Product Variant Information section
Available Packaging
Package Qty:
10000 per Reel
Package Style:
SOD-923
Mounting Method:
Surface Mount
