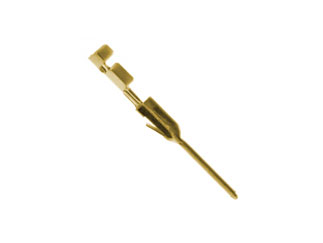

TE Connectivity | 102107-2

The 102107-2 is a AMPMODU 26-22 AWG 3 A 250 Crimp Pin Contact MTE Interconnection System offers both wire-to-board and wire-to-wire connectors using .025 [0.64] sq. post technology.

The AMPMODU MTE Interconnection System consists of single-row housings with contacts preloaded on .100 [2.54] centers. Housings are furnished with contacts partially inserted, leaving the termination areas exposed. Final contact insertion is accomplished automatically by AMP application equipment, and/or manually when terminated with the AMP pistol grip hand tool.

Product Type Features:

• Product Type = Contact
• Termination Method to Wire/Cable = Crimp
• Wire Insulation Diameter (mm [in]) = 1.55 [0.061]
• Connector Series = Mod IV
• With Insulation Support = Yes
• Applied Pressure = Standard
• Contact - Rated Current (A) = 3
• Voltage Rating (VAC) = 250
• Termination Resistance (m?) = 12
• Insulation Resistance (M?) = 5,000
• Dielectric Withstanding Voltage (V) = 750
• Solder Tail Contact Plating = Gold Flash over Nicke
• Operating Temperature (°C) = -65 – +105
