Microchip | MIC2176-2YMM

The MIC2176-2YMM is a constant-frequency, synchronous buck controller featuring a unique digitally modified adaptive ON-time control architecture. The MIC2176 family operates over an input supply range of 4.5 V to 75 V and can be used to supply up to 15 A of output current.

The output voltage is adjustable down to 0.8 V with a guaranteed accuracy of ± 1%, and the device operates at a constant switching frequency of 200 kHz.

Features:

• Hyper Speed Control TM architecture enables
• High delta V operation (VIN = 75 V and VOUT = 1.2 V)
• Small output capacitance
• 4.5 V to 75 V input voltage
• Output down to 0.8V with ± 1% accuracy
• Any Capacitor TM Stable
• Zero-ESR to high-ESR output capacitance
• 200 kHz switching frequency
• Internal compensation
• 6ms Internal soft-start
• Foldback current limit and “hiccup” mode short-circuit protection
• Thermal shutdown
• Supports safe start-up into a pre-biased output
• –40 ° C to +125 ° C junction temperature range

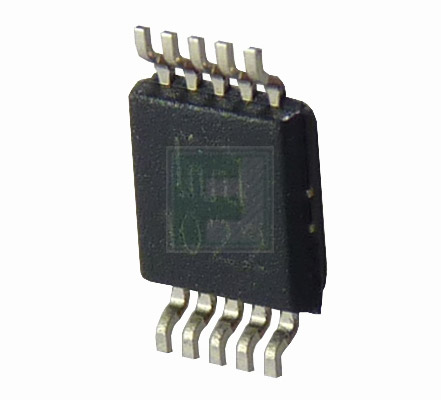

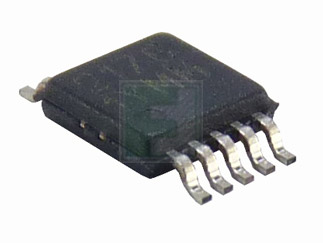

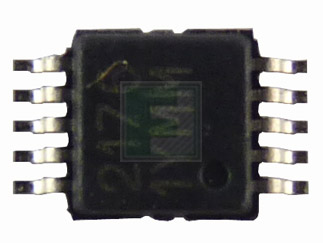

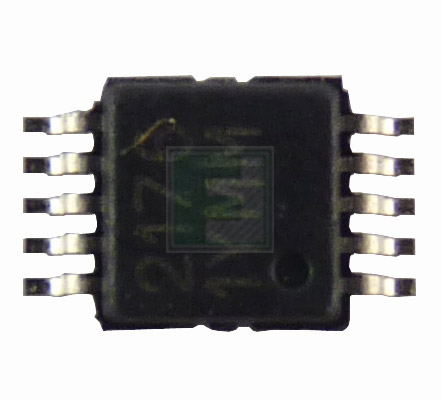

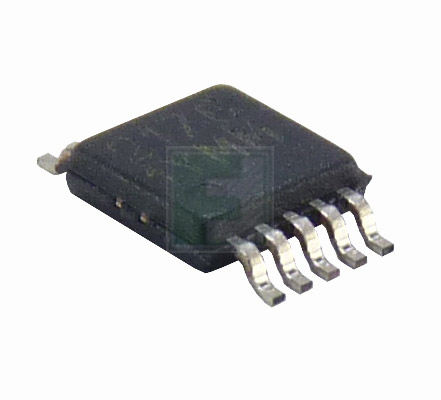

• Available in 10-pin MSOP package

Applications:

• Distributed power systems
• Networking/Telecom infrastructure
• Printers, scanners, graphic cards and video cards
