Manufacturer Part #

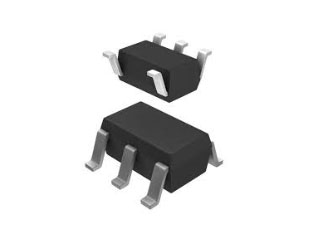

74LVC1G14QW5-7
74LVC1G Series 1.65 V - 5.5 V SMT 1-input Schmitt Trigger Inverter - SOT-25
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Diodes Incorporated | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:SOT-25 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2518 | ||||||||||
Product Specification Section
Diodes Incorporated 74LVC1G14QW5-7 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=74LVC1G14QW5-7&field4=Diodes Incorporated&field18=https://p1apac.futureelectronics.com/p/semiconductors--logic--gates--single-gate/74lvc1g14qw5-7-diodes-incorporated-4144185
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=74LVC1G14QW5-7&field4=Diodes Incorporated&field18=https://p1apac.futureelectronics.com/p/semiconductors--logic--gates--single-gate/74lvc1g14qw5-7-diodes-incorporated-4144185
Diodes Incorporated 74LVC1G14QW5-7 - Technical Attributes
Attributes Table
| Logic Circuit: | Inverter |
| No of Functions / Channels: | 1 |
| Supply Voltage-Nom: | 1.65V to 5.5V |
| Propagation Delay: | 6.5ns |
| Operating Temperature: | -40°C to +125°C |
| Capacitance: | 3.3pF to 5pF |
| No of Inputs: | 1 |
| No of Pins: | 5 |
| Quiescent Current: | 4µA |
| Moisture Sensitivity Level: | 1 |
| Package Style: | SOT-25 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
138,000
Singapore:
138,000
On Order:
0
Factory Lead Time:
24 Weeks
Quantity
Unit Price
3,000
$0.0408
9,000
$0.0398
15,000
$0.0394
45,000
$0.0384
75,000+
$0.0376
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
SOT-25
Mounting Method:
Surface Mount
