TE Connectivity | 1571999-1

Manufacturer Part #

1571999-1

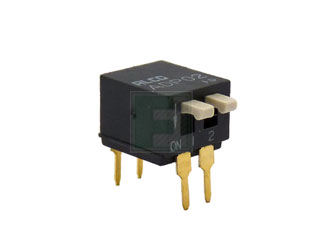

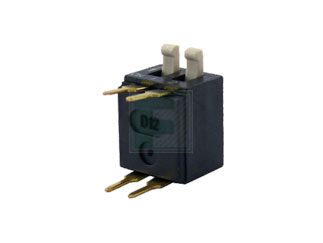

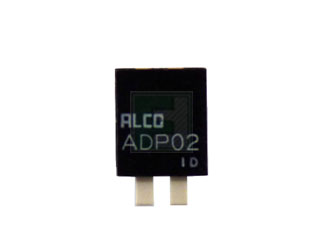

AD Series 2 Pos SPST Side Actuated NonSealed 2.54mm Pitch ThroughHole DIP Switch

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code: 2405
Product Specification Section
TE Connectivity 1571999-1 - Technical Attributes
Attributes Table
Type: Dip
No of Positions: 2
Circuitry: SPST
Termination Style: PCB
Sealed Option: Unsealed
Mounting Method: Through Hole
Features & Applications

The 1571999-1 is a part of AD Series, 2 Position SPST Side Actuated Non-Sealed 2.54 mm Pitch Through Hole DIP Switch

Product Features:

  • Product Type = Switch
  • PCB Mount Style = Through Hole
  • Configuration (Pole-Throw) = Single Pole - Single Throw
  • Actuator Style = Piano (Side Actuated)
  • Sealed = No
  • Series = AD
  • Number of Switches = 2
  • Switch Type = DIP
  • Centerline (mm [in]) = 2.54 [0.100]
  • Length (mm [in]) = 7.06 [0.278]
  • Auto-Insertable = Yes
  • Contact Base Material = Copper Alloy
  • Contact Plating, Mating Area, Material = Gold Flash
  • Housing Material = PPS
  • UL Flammability Rating = UL 94V-0
  • On Position = Lever Down





Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
22 Weeks
Minimum Order:
60
Multiple Of:
60
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$50.40
USD
Quantity
Unit Price
60
$0.84
120
$0.825
240
$0.81
300
$0.805
900+
$0.78
