DEUTSCH AMPSEAL 35 Position 3 Row Free Hanging Plug Housing Assembly
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:28 per Box | ||||||||||
| Date Code: | 2416 | ||||||||||
TE Connectivity 776164-2 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Description of ChangesThe Industrial and Commercial Transportation business unit of TE Connectivity is making a minor drawing change to clarify the verbiage of the note that calls out the material of the housings for the Ampseal Plug Assembly for the product drawing(s) listed.Reason for Changes:Dear Customer, we hereby inform you of this drawing change. The change is necessary to clarify the note which calls out the material used to make the Ampseal Housings. The change does not impact performance. IMPORTANT: There is no change to the parts or material used to make the parts. This change is only to clarify our drawings.
General Product Description:35 position AMPSEAL Wire SealDescription of ChangesPlease be aware of an upcoming feature and material change to the following part numbers 776164-1 776164-2 776164-4 776164-5 776164-6 The material change is to one of the components that makes up to the final material The feature change is to the ribs in the circuit holes and the sealing ribs on perimeter of the sealReason for Changes:The material is being changed because one of the components used in the final material was no longer available. The seal vendor performed validation testing before seals were molded and sent for testing The geometry change was to update the circuit geometry to the latest design used by the vendor and to change the design of the ribs on the perimeter of the seal to compression ribs
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=776164-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--pin-and-socket-connectors--header-plug-wire-mount/776164-2-te-connectivity-4194346
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=776164-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--pin-and-socket-connectors--header-plug-wire-mount/776164-2-te-connectivity-4194346
Features & Applications

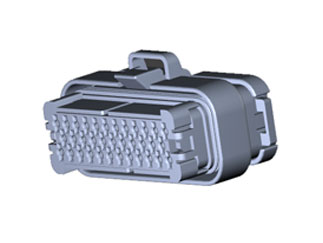

The 776164-2 is a AMPSEAL 35 Position 3 Row Free Hanging Plug Housing Assembly.
AMPSEAL connectors just got better. Known for their rugged reliability even under high-temperature automotive and industrial applications, they are now a snap to assemble. We have replaced the difficult-to-apply, labor-intensive gasket by bonding it to the header assembly. This product upgrade also eliminates purchasing and inventorying an extra part--the gasket. Or, if you prefer, we also offer the header with a separate gasket.
Features:
- Product Line = AMPSEAL
- Product Type = Connector
- Connector Type = Housing
- Mount = Free Hanging
- Mating Retention Type = Latching
- Seal Type = Peripheral and Wire Seals
- Centerline (mm [in]) = 4.00 [0.157]
- Number of Rows = 3
- Row-to-Row Spacing (mm [in]) = 2.00 [0.078]
- Number of Positions = 35
- Mating Retention = With
- Contact Type = Socket
- Contact Layout = Staggered
- Connector Style = Plug
- Mating Alignment = With
- Housing Color = Natural
Available Packaging
Package Qty:
28 per Box
