NorComp | 190-025-263R001

Manufacturer Part #

190-025-263R001

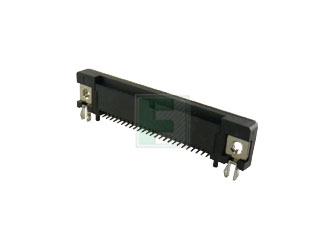

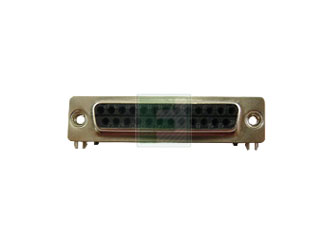

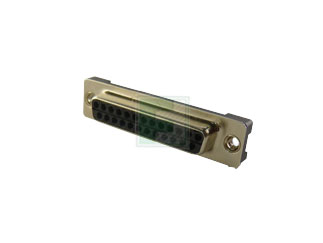

Female 25 Position Right Angle Surface Mount D-Sub Connector

ECAD Model:
Mfr. Name: NorComp
Standard Pkg:
Product Variant Information section
Date Code: 2222
Product Specification Section
NorComp 190-025-263R001 - Technical Attributes
Attributes Table
Style/Orientation: Standard Board Mount Receptacle
No of Positions: 25
Termination: PCB
Material: Front Metal
Mounting Method: Surface Mount
Features & Applications

The 190-025-263R001 is a part of 190 Series 25 Position Female Right angle SMT D-Sub Connectors

Features:

  • Available in 9 and 25 position
  • standard D-Sub
  • Available in 15 position female High Density
  • Metal shell provides shielding
  • Plug shells have indents to provide grounding and additional retention
  • Built in Board Locks add mechanical stability to pcb

Materials:

  • Shell: Steel-nickel plated
  • Insulator: Nylon 6T-UL94V-O, black
  • Contacts:
  • Male pins - Phosphor bronze
  • Female pins - Phosphor bronze
  • Plating:
    • Gold flash (mating area)
    • Tin (solder tails)
  • Board Locks: Brass-Nickel plated

Applications:

  • Industrial
  • Data communication





Read More...
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
16 Weeks
Minimum Order:
36
Multiple Of:
9
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$127.44
USD
Quantity
Unit Price
9
$3.61
36
$3.54
90
$3.50
225
$3.45
360+
$3.39
