NorComp | 780-M15-103L001

Manufacturer Part #

780-M15-103L001

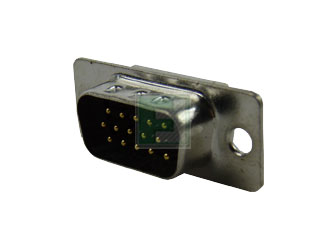

780-M Series 15 position high density vertical mount waterproof D-Sub Connectors

ECAD Model:
Mfr. Name: NorComp
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
NorComp 780-M15-103L001 - Technical Attributes
Attributes Table
Style/Orientation: High Density Plug
No of Positions: 15
Termination: Male/Pin Solder Cup
IP Rating: IP67
Material: Front Metal
Features & Applications

The 780-M15-103L001 is a Part of 780-M Series 15 position high density machined contact vertical mount waterproof male d-sub connectors

Features:

  • Available in 3 industry sizes/positions (15, 26, 44)
  • Meets IEC-529-IP67 Requirements
  • Unique sealing methods maintains STD D-sub profile
  • Panel sealing kits (Removable or Permanent) Available

Materials:

  • Shell: Steel with Nickel Plating.
  • Insulator: Glass-filled, PBT thermoplastic. U.L. rated 94V-O
  • Machined Contacts:
  • Male Pins - Brass
  • Female Pins - Brass
  • Plating: Gold Flash on entire contact.
  • Seal: Proprietary Information






Read More...
Pricing Section
Global Stock:
0
USA:
0
On Order:Order inventroy details
110
Factory Stock:Factory Stock:
0
Factory Lead Time:
16 Weeks
Minimum Order:
110
Multiple Of:
110
Total
$599.50
USD
Quantity
Unit Price
110
$5.45
220
$5.42
330+
$5.39
