Manufacturer Part #

B08B-PASK(LF)(SN)

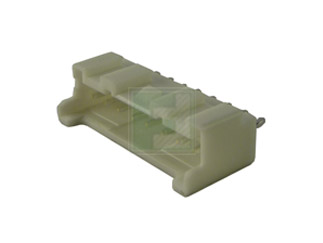

PA Series 8 Position 2 mm Pitch Top Entry No Boss Through Hole Shrouded Header

B08B-PASK(LF)(SN) Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free. Learn more about ECAD model.
Mfr. Name:	JST
Standard Pkg:	Product Variant Information section Available Packaging Box BoxSelected Variant Qty: 1+ / Unit Price: $0.25 / Stock: 519 Qty: 1+$0.25 Stock: 519 Package Qty: 500 per Box Mounting Method: Through Hole
Date Code:	2247

JST B08B-PASK(LF)(SN) - Technical Attributes

No of Positions:	8
Pitch:	2 mm
Style/Orientation:	Straight Header/Plug
Termination:	Crimp
Operating Temp Range:	-25°C to +85°C
Voltage Rating:	250V
Current Rating:	3A
Contact Plating:	Tin
Material:	Polybutylene Terephthalate
No of Rows:	1
Type:	Wire to Board
Color:	Natural
Insulation Resistance:	1000MΩ
Mounting Method:	Through Hole

Expand List

Collapse List

Features & Applications

The B08B-PASK(LF)(SN) is a Part of PA Series 8 Position 2 mm Wire-to-board or Wire-to-wire Crimp style Connector. Its operating Temperature ranges from -25 °C to +85 °C.

Features:

Secure locking device
Interchangeable between crimp and IDC socket
Secondary retainers
Harness variation
Highly reliable contact
Insertion guide mechanism
Flanged press pin

Specifications:

Current rating: 3 A
Voltage rating: 250 V
Temperature range: - 25 °C to +85 °C
Contact resistance: Initial value/10 mΩ max, After environmental testing/20 mΩ max
Insulation resistance: 1,000 MΩ min
withstanding Voltage: 800 V AC/minute
Applicable wire: AWG #28 to #20
Applicable PC board thickness: 1.6 mm
