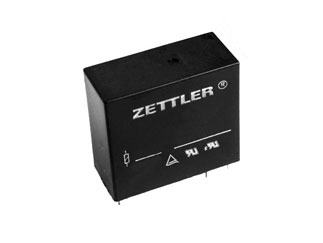

American Zettler | AZ733W-2A-12DE

Manufacturer Part #

AZ733W-2A-12DE

AZ733W Series 10 A DPST 12 VDC PCB Mount Sealed Miniature Power Relay

ECAD Model:
Mfr. Name: American Zettler
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
American Zettler AZ733W-2A-12DE - Technical Attributes
Attributes Table
Relay Type: Power
Coil Type: Non-Latching
Contact Form: DPST (2 Form A)
Nominal Coil Voltage: 12V
Contact Current-Max: 10A
Switching Voltage: 250V
Rated Power: 240W
Operating Temp Range: -40°C to +85°C
Insulation Resistance: 1000MΩ
Termination Style: PC Pin
No of Terminals: 6
Mounting Method: PCB Mount
Features & Applications

AZ733W Series 10 A DPST 12 VDC PCB Mount Sealed Miniature Power Relay.

Features:

  • High switching capacity
  • High dielectric strength, 5000 Vrms
  • Isolation spacing greater than 8 mm
  • Class B (130°C) insulation standard
  • 1.5 mm contact gap
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Minimum Order:
500
Multiple Of:
50
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$840.00
USD
Quantity
Unit Price
1
$1.78
25
$1.76
50
$1.74
150
$1.72
300+
$1.68
