Manufacturer Part #
ETQ-P4M100KFM

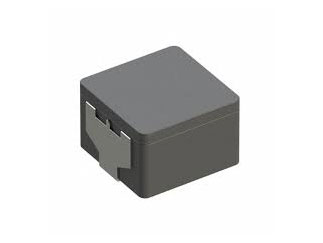

PCC-M0748M-LE Series 10 uH ±20 % 6 A 36 mOhm Surface Mount Power Inductor
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Panasonic Industry | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Reel Package Style:SMD-2 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2527 | ||||||||||
Panasonic Industry ETQ-P4M100KFM - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description:Notification of Change of Packaging Cover Tape for Power Choke Coil.Reason for change ?There are procurement issues with the current packaging cover tape, and we will change the cover tape type to ensure stable supply in the future.?The market share of current adhesive-type tape is approximately 10%, and this is decreasing year by year, so there is a risk that they may discontinue this adhesive type tape.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ETQ-P4M100KFM&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/1145510
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ETQ-P4M100KFM&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/1145510
Panasonic Industry ETQ-P4M100KFM - Technical Attributes
| Inductance-Nom: | 10µH |
| Rated Current-Max: | 6A |
| Tolerance (%): | ±20% |
| Shielding: | Yes |
| DC Resistance: | 39.6mΩ |
| Core Material: | Metal Composite |
| Test Frequency: | 100kHz |
| Operating Temp Range: | -40°C to +150°C |
| No of Terminals: | 2 |
| Dimension: | L 7.4mm x W 7mm x H 4.8mm |
| Moisture Sensitivity Level: | 1 |
| Package Style: | SMD-2 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
500 per Reel
Package Style:
SMD-2
Mounting Method:
Surface Mount
