Manufacturer Part #
DF9B-31P-1V(32)

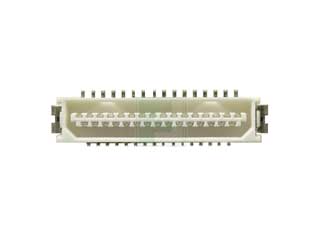

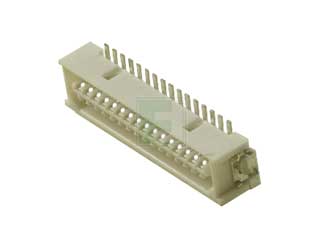

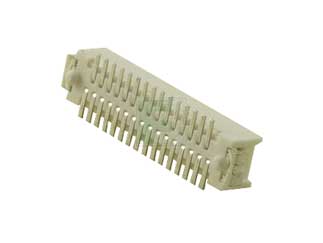

31 position surface mount 4.3 mm pitch straight board to board header
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | Hirose Electric | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:1000 per Reel Mounting Method:Surface Mount |
||||||||||
| Date Code: | 2530 | ||||||||||
Hirose Electric DF9B-31P-1V(32) - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=DF9B-31P-1V(32)&field4=Hirose Electric&field18=https://p1na.futureelectronics.com/p/1151158
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=DF9B-31P-1V(32)&field4=Hirose Electric&field18=https://p1na.futureelectronics.com/p/1151158
Hirose Electric DF9B-31P-1V(32) - Technical Attributes
| No of Positions: | 31 |
| Pitch: | 1 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -45°C to +125°C |
| Voltage Rating: | 150V |
| Current Rating: | 0.5A |
| Contact Plating: | Tin |
| Material: | Polyamide |
| No of Rows: | 2 |
| Gender: | Male |
| Type: | Board to Board |
| Color: | Beige |
| Insulation Resistance: | 500MΩ |
| Mounting Method: | Surface Mount |
Features & Applications
The DF9 Sereis is a VESA and FPDI-1 compliant Board to Board connector. Miniature in size and with a 1 mm pitch, this Board to Board connector is built for designs with limited space such as Liquid Crystal Display systems, Mobile Phones and Note PC's. The DF9 series also features an easy lock mechanism and a trapezoid design which acts as a mis-insertion preventor.
The DF9B-31P-1V(32) is a thirty-one (31) position header with a straight and surface mount contact style. It has a stacking height of 4.3 mm and has a tin plated contact mating area. This header also features a metal holddown option.
Available Packaging
Package Qty:
1000 per Reel
Mounting Method:
Surface Mount
