Lumex | SSL-LX507DT3SYT

Manufacturer Part #

SSL-LX507DT3SYT

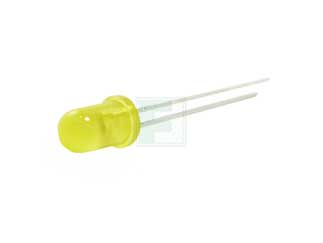

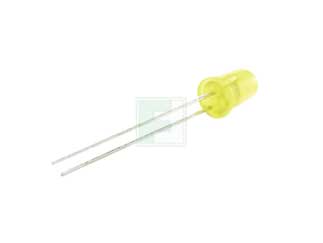

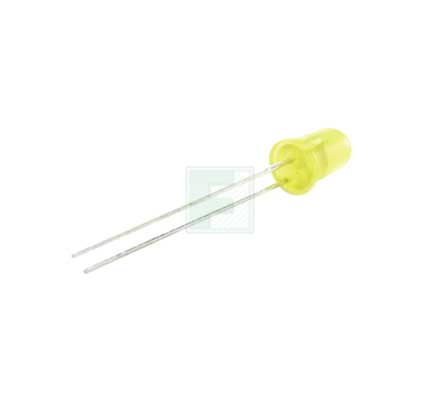

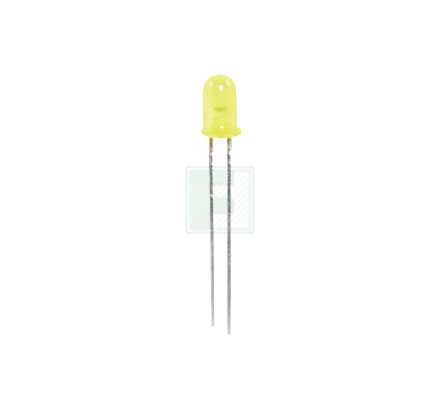

Yellow 5 mm 140° Transparent 200 mcd 2.1 V Dimple Top Through Hole LED - T-1¾

ECAD Model:
Mfr. Name: Lumex
Standard Pkg:
Product Variant Information section
Date Code: 2310
Product Specification Section
Lumex SSL-LX507DT3SYT - Technical Attributes
Attributes Table
No of LEDs: 1
Color: Yellow
Lens Type: Clear
Forward Voltage: 2.1V
Forward (Drive) Current: 20mA
Intensity: 200mcd
Viewing Angle: 140°
Wavelength: 590nm
Rated Power: 125mW
Operating Temp Range: -40°C to +85°C
Storage Temperature Range: -40°C to +85°C
Dimension: H  7mm x D  5.8mm
Mounting Method: Through Hole
Features & Applications

The SSL-LX507DT3SYT is a part of SSL-LX series LED's. It has an operating temperature ranging from - 40°C to 85°C.

Features:

  • It has forward current of 150 mA
  • Study current: 30 mA
  • Power Dissipation: 125 mW
  • Peak Wavelength: 590 nm
  • Forward Voltage: 2.1 V
  • Reverse Voltage: 5 V
  • Viewing Angle: 140°
  • Emitted Colour: Yellow
Pricing Section
Global Stock:
8
USA:
8
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
16 Weeks
Minimum Order:
1
Multiple Of:
1
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$0.25
USD
Quantity
Unit Price
1
$0.25
125
$0.245
250
$0.24
750
$0.235
1,500+
$0.225
