Manufacturer Part #
B10P-VH(LF)(SN)

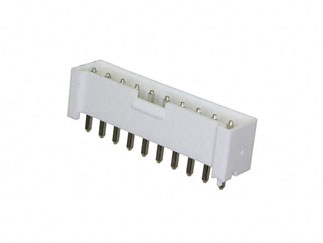

VH Series 10 Position Single Row 3.96 mm Pitch Male Pin Header Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:200 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | 2201 | ||||||||||
Product Specification Section
JST B10P-VH(LF)(SN) - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=B10P-VH(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/2043032
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=B10P-VH(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/2043032
JST B10P-VH(LF)(SN) - Technical Attributes
Attributes Table
| No of Positions: | 10 |
| Pitch: | 3.96 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Crimp |
| Operating Temp Range: | -25°C to +85°C |
| Voltage Rating: | 250V |
| Current Rating: | 10A |
| Contact Plating: | Tin |
| Material: | Polybutylene Terephthalate |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Header |
| Mating Type: | Locking Ramp |
| Color: | Natural |
| Insulation Resistance: | 1000MΩ |
| Mounting Method: | Through Hole |
Features & Applications
The B10P-VH(LF)(SN) is a Part of VH Series 10 Position 3.96 mm Pitch Crimp style Connector. Its operating Temperature ranges from -25 °C to +85 °C.
Features:
- Proven box contact
- Compact connector with a large capacity
- Secure contact and mounting
Specifications:
- Current rating: 10 A
- Voltage rating: 50 V
- Temperature range: - 25 °C to +85 °C
- Contact resistance: Initial value/10 mΩ max, After environmental testing/20 mΩ max
- Insulation resistance: 1,000 MΩ min
- withstanding Voltage: 1,500 V AC/minute
- Applicable wire: AWG #22 to #16
- Applicable PC board thickness: 1.6 mm
Pricing Section
Global Stock:
1,222
USA:
1,222
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
1
$0.32
100
$0.315
300
$0.31
1,000
$0.30
3,000+
$0.285
Product Variant Information section
Available Packaging
Package Qty:
200 per Box
