Manufacturer Part #
403CMQ100

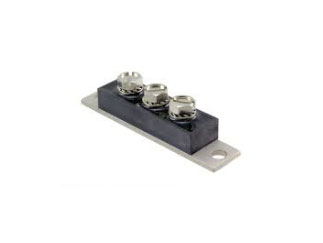

403CMQ Series 100 V 400 A Chassis Mount Schottky Rectifier - PRM4(Isolated)
| | |||||||||||
| | |||||||||||
| Mfr. Name: | SMC | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:9 per Tray Mounting Method:Chassis Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
SMC 403CMQ100 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=403CMQ100&field4=SMC&field18=https://p1na.futureelectronics.com/p/2059324
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=403CMQ100&field4=SMC&field18=https://p1na.futureelectronics.com/p/2059324
SMC 403CMQ100 - Technical Attributes
Attributes Table
| Average Rectified Current-Max: | 400A |
| Peak Current-Max: | 3960A |
| Reverse Voltage-Max [Vrrm]: | 100V |
| Reverse Current-Max: | 6mA |
| Forward Voltage: | 0.85V |
| Configuration: | Dual |
| Diode Capacitance-Max: | 5500pF |
| Thermal Resistance: | 0.2°C/W |
| Operating Temp Range: | -55°C to +175°C |
| Storage Temperature Range: | -55°C to +175°C |
| Mounting Method: | Chassis Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
13 Weeks
Quantity
Unit Price
9
$37.80
18
$37.51
27
$37.35
36
$37.23
45+
$36.87
Product Variant Information section
Available Packaging
Package Qty:
9 per Tray
Mounting Method:
Chassis Mount
