Diodes Incorporated | SDM20E40C-7-F

Manufacturer Part #

SDM20E40C-7-F

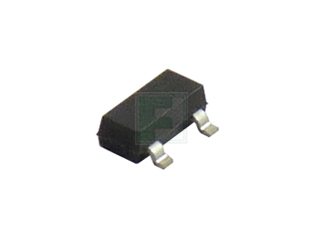

Diode Schottky 40V 0.4A 3-Pin SC-59 T/R - Tape and Reel

ECAD Model:
Mfr. Name: Diodes Incorporated
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Diodes Incorporated SDM20E40C-7-F - Technical Attributes
Attributes Table
Product Status: Active
Average Rectified Current-Max: 400mA
Peak Current-Max: 2A
Reverse Voltage-Max [Vrrm]: 40V
Reverse Current-Max: 70µA
Forward Voltage: 500mV
Diode Capacitance-Max: 100pF
Thermal Resistance: 180°C/W
Operating Temp Range: -30°C to +85°C
Power Dissipation: 400mW
Configuration: Dual Anode Common Cathode
Package Style:  SOT-23 (SC-59,TO-236)
Mounting Method: Surface Mount
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
12 Weeks
Minimum Order:
3000
Multiple Of:
3000
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$159.30
USD
Quantity
Unit Price
3,000
$0.0531
6,000
$0.0522
9,000
$0.0517
15,000
$0.051
30,000+
