Manufacturer Part #
AZ8-1CH-9DE

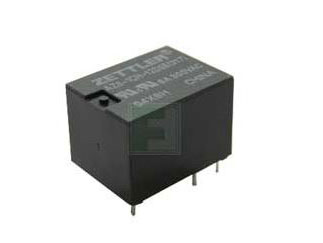

AZ8 Series SPDT ( 1 Form C ) 9 V 6 A Through Hole Miniature PC Board Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | American Zettler | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:20 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | 2405 | ||||||||||
Product Specification Section
American Zettler AZ8-1CH-9DE - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
American Zettler AZ8-1CH-9DE - Technical Attributes
Attributes Table
| Relay Type: | General Purpose |
| Coil Type: | Non-Latching |
| Contact Form: | SPDT (1 Form C) |
| Coil Current: | 50mA |
| Nominal Coil Voltage: | 9V |
| Contact Current-Max: | 6A |
| Coil Resistance: | 180Ω |
| Switching Voltage: | 150V |
| Contact Material: | Silver Nickel (AgNi) |
| Operating Temp Range: | -55°C to +90°C |
| Insulation Resistance: | 1GΩ |
| Termination Style: | PC Pin |
| No of Terminals: | 5 |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
940
USA:
940
On Order:
0
Factory Lead Time:
N/A
Quantity
Unit Price
20
$1.20
60
$1.18
300
$1.16
500+
$1.14
Product Variant Information section
Available Packaging
Package Qty:
20 per Box
Mounting Method:
Through Hole
