Manufacturer Part #
0001.1015.PT

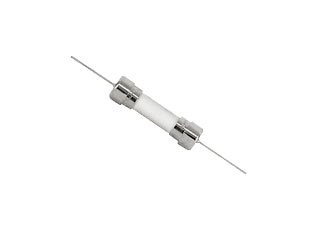

Quick Fast Action Ø5.4x22.5mm 250 V 12.5 A Pigtail Non Resettable Miniature Fuse
| | |||||||||||
| | |||||||||||
| Mfr. Name: | SCHURTER | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Bulk Package Style:CARTRIDGE Mounting Method:Fuse Block / Clip / Holder | ||||||||||
| Date Code: | |||||||||||
SCHURTER 0001.1015.PT - Product Specification
Shipping Information:
ECCN:
PCN Information:
Detailed description of change All product types listed in section 1 receive a new label layout. To better visualize the changes, we have used colors and numbers to cluster information into the following sections (The colors and white numbers are not part of the new label layout): Product identification section: 1) To improve readability, we clustered all the information concerning product identification in this group. To increase clarity, we added the configuration code into this area. 1 2) Product conformity section: Identical information was slightly rearranged. 3) Product logistics section: Label names changed. Information was slightly rearranged. 4) Product approval section: Identical information was slightly rearranged. 5) Interruption ratings section: Identical information was slightly rearranged. Origin information section: Label for Factory Code was added. Information was slightly rearranged. Reason:SCHURTER improves and modernizes the label printing process to increase standardization and harmonize processes throughout all SCHURTER factory locations.
Part Status:
SCHURTER 0001.1015.PT - Technical Attributes
| Rated Voltage (VAC): | 250VAC |
| Response Characteristic: | Fast-Acting |
| Current Rating: | 12.5A |
| Operating Temp Range: | -55°C to +125°C |
| Typical Melting I2t (A2sec): | 203A |
| Dimension: | L 22.5mm x D 5.4mm |
| Storage Temperature Range: | 0°C to 60°C |
| Moisture Sensitivity Level: | 1 |
| Package Style: | CARTRIDGE |
| Mounting Method: | Fuse Block / Clip / Holder |
Available Packaging
Package Qty:
1000 per Bulk
Package Style:
CARTRIDGE
Mounting Method:
Fuse Block / Clip / Holder
