Manufacturer Part #
NZ9F5V6ST5G

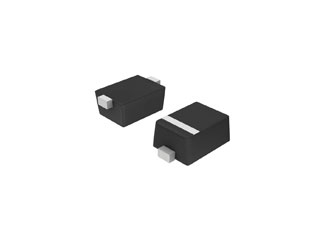

NZ9F5 Series 5.6 V 250 mW ±2% Surface Mount Zener Diode SOD-923
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:8000 per Reel Package Style:SOD-923 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2351 | ||||||||||
Product Specification Section
onsemi NZ9F5V6ST5G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NZ9F5V6ST5G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/3104632
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NZ9F5V6ST5G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/3104632
onsemi NZ9F5V6ST5G - Technical Attributes
Attributes Table
| Power Dissipation: | 250mW |
| Forward (Drive) Current: | 10mA |
| Forward Voltage: | 0.9V |
| Reverse Current-Max: | 1µA |
| Voltage Tolerance: | 2% |
| Impedance: | 60Ω |
| Operating Temp Range: | -65°C to +150°C |
| Voltage Temperature Coefficient: | 2.5mV/K |
| Capacitance: | 115pF |
| Configuration: | Single |
| Working Voltage-Nom: | 5.6V |
| No of Terminals: | 2 |
| Package Style: | SOD-923 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
16,000
USA:
16,000
On Order:
0
Factory Lead Time:
31 Weeks
Quantity
Unit Price
8,000
$0.0309
16,000
$0.0304
24,000
$0.0302
32,000
$0.03
40,000+
$0.0293
Product Variant Information section
Available Packaging
Package Qty:
8000 per Reel
Package Style:
SOD-923
Mounting Method:
Surface Mount
