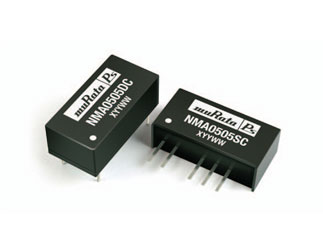

Murata Power Solutions | NMA0505SC

The NMA0505SC series is a DC/DC converters are the standard building blocks for on-board distributed power systems. They are ideally suited for providing dual rail supplies on primarily digital boards with the added benefi t of galvanic isolation to reduce switching noise. All of the rated power may be drawn from a single pin provided the total load does not exceed 1 watt.

Features:

• RoHS compliant
• Efficiency up to 80%
• Power density up to 0.85 W/cm3
• Wide temperature performance at full 1 Watt load, –40°C to 85°C
• Dual output from a single input rail
• UL 94 V-0 package material
• No heatsink required
• Footprint from 1.17 cm2
• Industry standard pinout
• Power sharing on output
• 1 kVDC isolation
• 5 V, 12 V, & 15 V input
• 5 V, 9 V, 12 V and 15 V output
• Internal SMD construction
• Fully encapsulated with toroidal magnetics
• No external components required
• MTTF up to 3.1 million hours
• No electrolytic or tantalum capacitors
