Manufacturer Part #
16SEQP39M

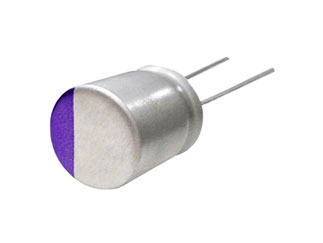

Cap Aluminum Polymer 39uF 16VDC 20% (6.3 X 6mm) Radial 2.5mm 0.05 Ohm 512mA 1000
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Panasonic Industry | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Bag Mounting Method:Through Hole | ||||||||||
| Date Code: | 2536 | ||||||||||
Panasonic Industry 16SEQP39M - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description:After thorough consideration and evaluation, we regret to inform you that we will no longer be recommending the use of all THT Type and a few SMD Type of Conductive Polymer Aluminum Solid Capacitors (OS-CON) for new designs. Reason for Not Being RecommendedFollowing SMD market trend to improve efficiency and optimization of resourcesSchedule Effective date: ImmediatelyScheduled EOL: Oct 2026
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=16SEQP39M&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/3142242
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=16SEQP39M&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/3142242
Panasonic Industry 16SEQP39M - Technical Attributes
| Type: | Metal Can Radial |
| Capacitance: | 39µF |
| Rated Voltage: | 16V |
| Tolerance (%): | ±20% |
| ESR (Equivalent Series Resistance): | 50mΩ |
| Ripple Current: | 512mA |
| Operating Temp Range: | -55°C to +125°C |
| Lead Spacing: | 2.5mm |
| Dimension: | L 6mm x D 6.3mm |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
500 per Bag
Mounting Method:
Through Hole
