Manufacturer Part #
V275LA4P

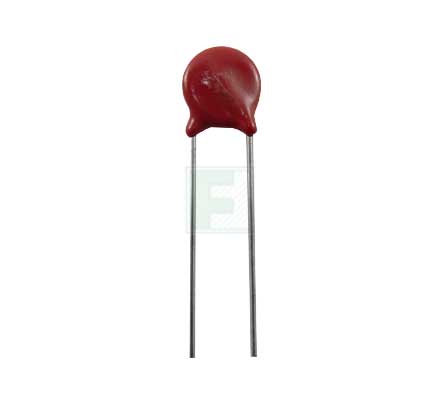

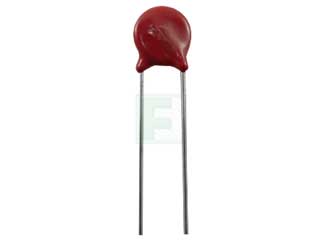

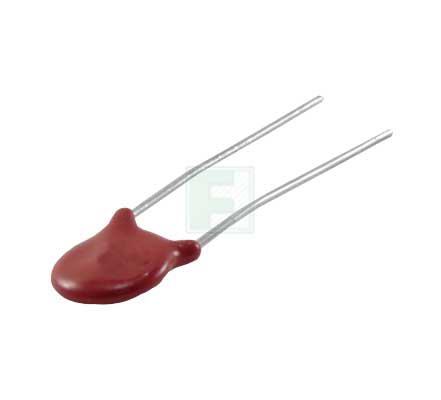

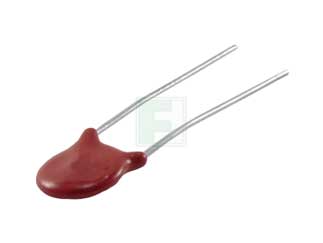

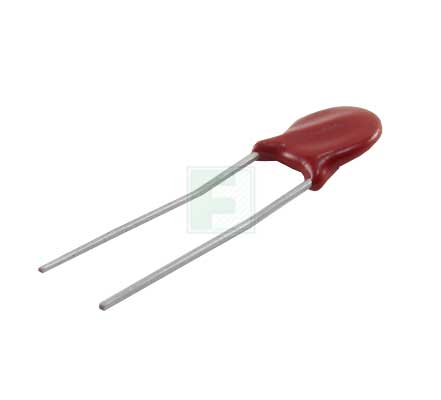

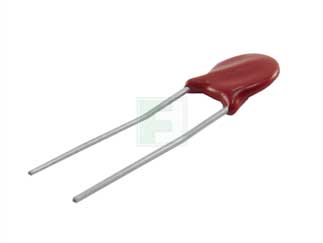

LA Series 369 VDC 275 V RMS 710 V Clamp 1200 A 80 pF Radial Lead Varistor
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1500 per Box Package Style:RADIAL Mounting Method:Through Hole | ||||||||||
| Date Code: | 2515 | ||||||||||
Product Specification Section
Littelfuse V275LA4P - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Material Change
01/25/2024 Details and Download
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=V275LA4P&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/3603768
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=V275LA4P&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/3603768
Littelfuse V275LA4P - Technical Attributes
Attributes Table
| Capacitance: | 80pF |
| Clamping Voltage-Max: | 710V |
| Peak Output Current: | 1200A |
| Rated Voltage: | 369V |
| RMS Voltage-Max: | 275V |
| Varistor Voltage Range: | 387V to 473V |
| Current Rating: | 1mA |
| Energy: | 23J |
| Insulation Resistance: | 1000MΩ |
| Operating Temp Range: | -55°C to +85°C |
| Storage Temperature Range: | -55°C to +125°C |
| No of Terminals: | 2 |
| Diameter: | 7mm |
| Package Style: | RADIAL |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
2,416
USA:
2,416
Factory Lead Time:
13 Weeks
Quantity
Unit Price
1
$0.0694
400
$0.0676
1,500
$0.0655
5,000
$0.0637
20,000+
$0.0598
Product Variant Information section
Available Packaging
Package Qty:
1500 per Box
Package Style:
RADIAL
Mounting Method:
Through Hole
