Manufacturer Part #
B15B-PH-K-S(LF)(SN)

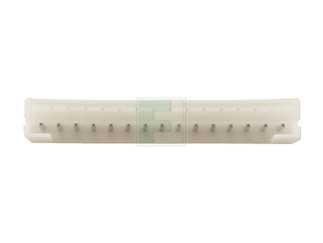

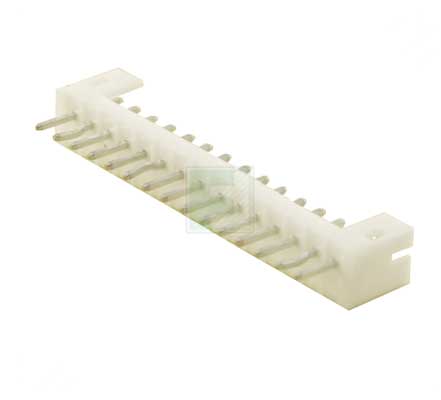

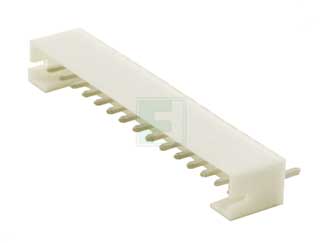

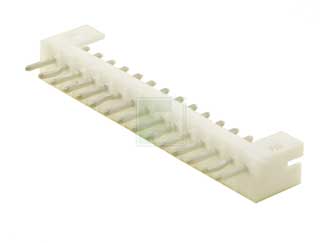

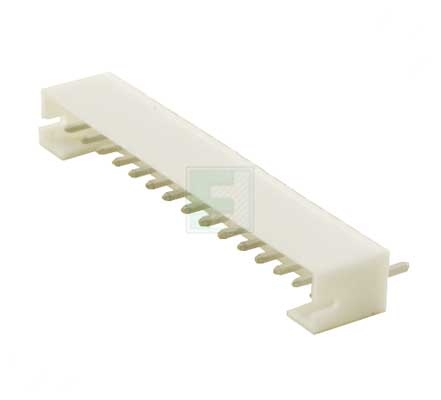

PH Series 15 Position 2 mm Pitch Surface Mount Top Entry Shrouded Header
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:250 per Box Mounting Method:Through Hole |
||||||||||
| Date Code: | |||||||||||
JST B15B-PH-K-S(LF)(SN) - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=B15B-PH-K-S(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/3686375
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=B15B-PH-K-S(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/3686375
JST B15B-PH-K-S(LF)(SN) - Technical Attributes
| No of Positions: | 15 |
| Pitch: | 2 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Crimp |
| Operating Temp Range: | -25°C to +85°C |
| Voltage Rating: | 100V |
| Current Rating: | 2A |
| Contact Plating: | Tin |
| Material: | Polyamide |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Shrouded Header |
| Mating Type: | Detent Lock |
| Color: | Natural |
| Insulation Resistance: | 1000MΩ |
| Mounting Method: | Through Hole |
Features & Applications
The B15B-PH-K-S(LF)(SN) is a part of PH series with an Height of 8.0 mm after mounting and 4.5 mm wide, and is designed to meet the demand for High-Density Connection of internal wires to PCB. It is also known as Disconnectable Crimp Connector. It has an Operating Temperature range of -25° C to +85° C.
Product Features:
- Reliable Contact
- Fully Shrouded Header
- Current Rating: 2A AC, DC(AWG #24)
- Voltage Rating: 100V AC, DC
- Contact Resistance: Initial value/10mO max.
- Insulation Resistance: 1000 MO min
- Withstanding voltage: 800V AC/minute
- Applicable wire: AWG #32 to #24
- Applicable PC board thickness: 0.8 to 1.6mm
- Printed circuit board retention mechanism
- Surface Mount Model
Available Packaging
Package Qty:
250 per Box
Mounting Method:
Through Hole
