Manufacturer Part #
PHDR-16VS

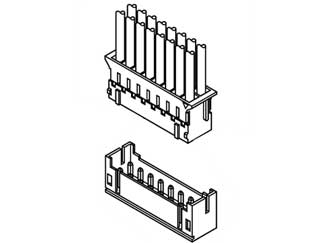

PHD Series 16 Position 2.0 mm Dual Row Wire to Board Socket
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:1000 per Bag |
||||||||||
| Date Code: | 2414 | ||||||||||
Product Specification Section
JST PHDR-16VS - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
China
HTS Code:
8538.90.60.00
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PHDR-16VS&field4=JST&field18=https://p1na.futureelectronics.com/p/3778644
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PHDR-16VS&field4=JST&field18=https://p1na.futureelectronics.com/p/3778644
JST PHDR-16VS - Technical Attributes
Attributes Table
| Type: | Wire to Board |
| No of Positions: | 16 |
| Pitch: | 2 mm |
| Style/Orientation: | Free Hanging Socket/Receptacle |
| Termination: | Crimp |
Features & Applications
The PHDR-16VS is a part of PHD Series 2.0 mm 16 Position dual Row wire to Board Connector.
Features:
- Compact
- Reliable contacts
- Fully shrouded header
Product Specifications:
- Pitch: 2.0 mm
- Current rating: 3.0 A
- Voltage rating: 250 V
- Temperature range: -25°C to +85°C
- Insulation resistance: 1000 M?
View the Complete PHD Series of Connectors
Pricing Section
Global Stock:
925
USA:
925
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
125
$0.169
300
$0.166
1,000
$0.162
2,000
$0.16
5,000+
$0.154
Product Variant Information section
Available Packaging
Package Qty:
1000 per Bag
