Manufacturer Part #
CMD12-21VYC/TR8

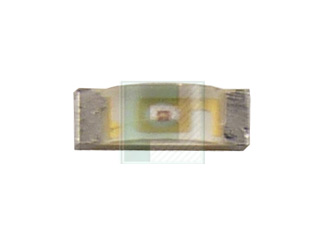

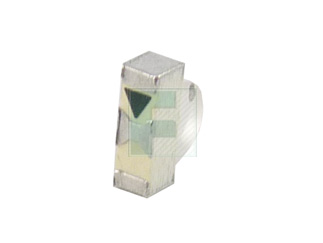

CMD12-21 Series Yellow 2 mm 120° 3 mcd Clear 2 V Surface Mount Right Angle LED
| | |||||||||||
| | |||||||||||
| Mfr. Name: | VCC | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2536 | ||||||||||
Product Specification Section
VCC CMD12-21VYC/TR8 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=CMD12-21VYC/TR8&field4=VCC&field18=https://p1na.futureelectronics.com/p/4016168
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=CMD12-21VYC/TR8&field4=VCC&field18=https://p1na.futureelectronics.com/p/4016168
VCC CMD12-21VYC/TR8 - Technical Attributes
Attributes Table
| No of LEDs: | 1 |
| Color: | Yellow |
| Lens Type: | Clear |
| Forward Voltage: | 2V |
| Forward (Drive) Current: | 30mA |
| Intensity: | 3mcd |
| Viewing Angle: | 120° |
| Wavelength: | 585nm |
| Rated Power: | 85mW |
| Operating Temp Range: | -40°C to +85°C |
| Storage Temperature Range: | -40°C to +85°C |
| Dimension: | H 2mm x L 3mm x W 1mm |
| Mounting Method: | Surface Mount |
Features & Applications
The CMD12-21VYC/TR8 is a 585 nm yellow color, clear lens, surface mount LED with a typical luminous intensity of 3 mcd.
Features:
- Surface Mount Technology
- Tape and reel packaged for high-speed autoinsertion.
- Convection and vapor-phase reflow compatible.
- Compact form enables high density placement.
- Packaged 2000 pieces per reel.
- Leading Edge LED Optoelectronic Performance
- Consistent high brightness.
- Integral lensing for narrow angle light dispersion.
- Bi-color available.
- Exceptional Reliability
- Stringent process controls assure quality.
- Extensive qualification testing to meet strictest requirements.
- Designed to permit easy post-reflow solder joint inspection.
- Solder pad geometry on page 1-X2.
Pricing Section
Global Stock:
2,000
USA:
2,000
On Order:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
2,000+
$0.295
Product Variant Information section
Available Packaging
Package Qty:
2000 per Reel
Mounting Method:
Surface Mount
