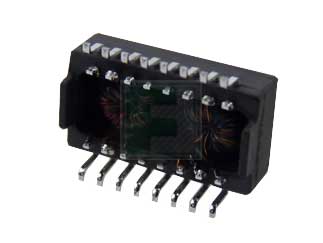

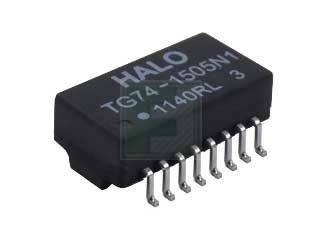

HALO Electronics | TG74-1505N1RL

Manufacturer Part #

TG74-1505N1RL

TG74 Series 1.5 mH 0.8 Ohm SMD Dual Line Interface Module

ECAD Model:
Mfr. Name: HALO Electronics
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
HALO Electronics TG74-1505N1RL - Technical Attributes
Attributes Table
No of Ports: Dual
Turns Ratio (Np:Ns): 1CT:1CT & 1CT:2CT
Inductance: 0.5µH
DC Resistance: 0.8Ω
Mounting Method: Surface Mount
Features & Applications

The TG74-1505N1RL is a 16 Pin SMD Line Interface Module LAN signal Transformer. This have been developed to meet the isolation and impedance match requirements for T1, E1, CEPT and PRI ISDN applications.

Specifications:

  • Operating Temperature: 0 to 70°C
  • Isolation Voltage: 1,500 Vrms
  • Cw/w: 30pF Max
  • Crosstalk (0.1-10MHz): -60dB Typ
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
14 Weeks
Minimum Order:
520
Multiple Of:
40
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$837.20
USD
Quantity
Unit Price
1
$1.67
30
$1.65
100
$1.63
250
$1.61
750+
$1.57
