Manufacturer Part #
LQH5BPN470M38L

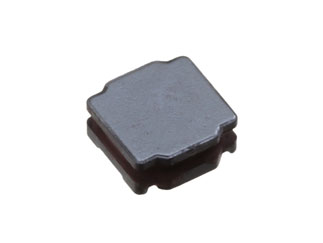

LQH5B Series 47 uH ±20 % 1.1 A 264 mOhm SMT Shielded Wirewound Inductor
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Murata | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:400 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Murata LQH5BPN470M38L - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LQH5BPN470M38L&field4=Murata&field18=https://p1na.futureelectronics.com/p/5195963
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LQH5BPN470M38L&field4=Murata&field18=https://p1na.futureelectronics.com/p/5195963
Murata LQH5BPN470M38L - Technical Attributes
Attributes Table
| Type: | Shielded |
| Inductance-Nom: | 47µH |
| Rated Current-Max: | 1.1A |
| Tolerance (%): | ±20% |
| DC Resistance: | 220mΩ |
| Self Resonance Frequency: | 6MHz |
| Core Material: | Ferrite |
| Test Frequency: | 100kHz |
| Operating Temp Range: | -40°C to +125°C |
| Storage Temperature Range: | -40°C to +85°C |
| Dimension: | L 4.9mm x W 4.9mm x H 4mm |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
400
$0.245
1,200
$0.24
1,600
$0.235
6,000+
$0.23
Product Variant Information section
Available Packaging
Package Qty:
400 per Reel
Mounting Method:
Surface Mount
