Manufacturer Part #
556881-4

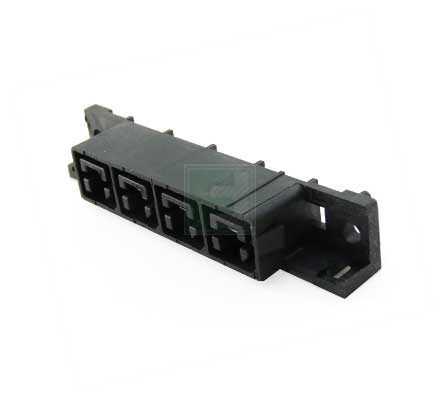

4 Position 11.18 mm Vertical AMPINNERGY Connector
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:100 per Box |
||||||||||
| Date Code: | |||||||||||
TE Connectivity 556881-4 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=556881-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/5844972
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=556881-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/5844972
Features & Applications
The 556881-4 is part of Wire-to-Board connectors, these connectors have polarizing features to prevent error--free mating and, in addition, the polarizing post on vertical receptacles assists in proper positioning on the pc board. The locking features prevent the connectors from accidentally disengaging.
The connectors can be placed on the pc (printed circuit) board manually or by automatic robotic equipment. Temprature ranges from 0° C– 105° C
Product Features:
- Applies To Printed Circuit Board
- Connector Assembly
- Connector Style = Receptacle
- PCB Mount Retention = Without
- Termination Method to PC Board = Through Hole - Solder
- PCB Mount Alignment = Without
- Contact - Rated Current (A) = 35
- Operating Voltage (VAC) = 600
- Housing Material = Polyphenylene Sulfide
View the complete Series of Wire to Board Connectors
Available Packaging
Package Qty:
100 per Box
