Manufacturer Part #
B8B-ZR(LF)(SN)

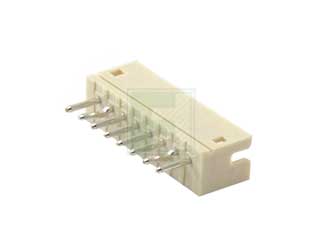

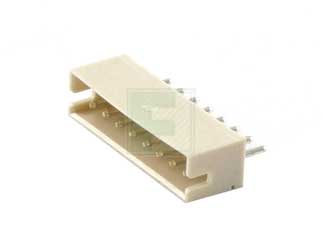

ZH Series 8 Position 1.5 mm Pitch Top Entry Through Hole Shrouded Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | 2531 | ||||||||||
Product Specification Section
JST B8B-ZR(LF)(SN) - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=B8B-ZR(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/6015663
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=B8B-ZR(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/6015663
JST B8B-ZR(LF)(SN) - Technical Attributes
Attributes Table
| No of Positions: | 8 |
| Pitch: | 1.5 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Crimp |
| Operating Temp Range: | -25°C to +85°C |
| Voltage Rating: | 50V |
| Current Rating: | 1A |
| Contact Plating: | Tin |
| Material: | Polyamide |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Shrouded Header |
| Mating Type: | Detent Lock |
| Color: | Natural |
| Insulation Resistance: | 500MΩ |
| Mounting Method: | Through Hole |
Features & Applications
The B8B-ZR(LF)(SN) is a part of ZR Series that ensure reliable connection even during severe environmental conditions and this connector is also known as Disconnectable Insulation Displacement Connector. It has an Operating Temperature range of -25° C to +85° C.
Product Features:
- Compact
- Fully shrouded header
- Twin U-slot insulation displacement section
- 3-point grip construction
- Distortion resistant construction
- Compatible with the ZH crimp style connector
- Current Rating : 0.7 A AC, DC(AWG #28)
- Voltage Rating : 50 V AC, DC
- Contact Resistance : Initial value/20 mO max.
- Insulation Resistance : 500 MO min
- Withstanding voltage : 500 V AC/minute
- Applicable wire : UL1571, AWG #30,#28
- Applicable PC board thickness : 0.6 to 1.2 mm, 1.6 mm
Pricing Section
Global Stock:
1,396
USA:
1,396
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
1
$0.158
200
$0.154
500
$0.152
2,000
$0.148
5,000+
$0.142
Product Variant Information section
Available Packaging
Package Qty:
1000 per Box
Mounting Method:
Through Hole
