Manufacturer Part #
WSX135-1770

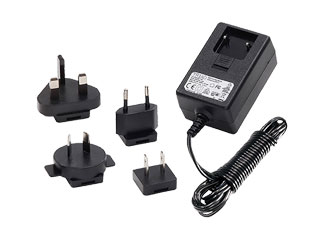

WSX Series 90 to 264 V Input 13.5 V Output Level VI Interchangeable Wall Plug
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Triad Magnetics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:60 per Bulk Mounting Method:Wall Mount | ||||||||||
| Date Code: | |||||||||||
Triad Magnetics WSX135-1770 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Change:We will stop offering the WSX Series power supplies with China Compulsory Certificate (CCC) mark and corresponding input plug.Reason for Change:WSX Series is currently manufactured in China. Due to the ongoing tariff disputes, it has become unsustainable to keep manufacturing in China. Therefore, production will be relocated to Vietnam where other similar products are being produced.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=WSX135-1770&field4=Triad Magnetics&field18=https://p1na.futureelectronics.com/p/6074591
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=WSX135-1770&field4=Triad Magnetics&field18=https://p1na.futureelectronics.com/p/6074591
Triad Magnetics WSX135-1770 - Technical Attributes
| Type: | Wall Mount |
| No of Outputs: | Single |
| Output Power: | 23.9W |
| Output Voltage: | 13.5V |
| Efficiency / MEPS: | Level VI |
| Output Current: | 1.77A |
| Input Voltage (VAC): | 90VAC to 264VAC |
| Ripple & Noise: | 200mV/K |
| Load Regulation (%): | 5% |
| Operating Temp Range: | 0°C to 40°C |
| Mounting Method: | Wall Mount |
Available Packaging
Package Qty:
60 per Bulk
Mounting Method:
Wall Mount
