100DP1T1B1M1QEH

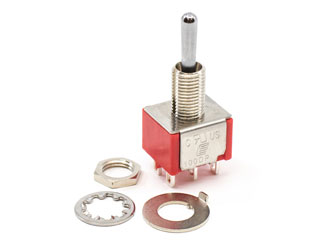

100 Series DPDT On-None-On Through Hole Miniature Toggle Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | E-Switch | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:96 per Bulk Mounting Method:Panel Mount | ||||||||||
| Date Code: | |||||||||||
E-Switch 100DP1T1B1M1QEH - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=100DP1T1B1M1QEH&field4=E-Switch&field18=https://p1na.futureelectronics.com/p/6395560
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=100DP1T1B1M1QEH&field4=E-Switch&field18=https://p1na.futureelectronics.com/p/6395560
E-Switch 100DP1T1B1M1QEH - Technical Attributes
| Switch Operation: | On-None-On |
| Circuitry: | DPDT |
| Rated Voltage (VAC): | 120VAC |
| Voltage Rating: | 28V |
| Current Rating: | 5A |
| Insulation Resistance: | 1GΩ |
| Contact Material: | Silver |
| Contact Plating: | Silver |
| Actuator Type: | Toggle |
| Termination Style: | Solder Lug |
| Dielectric Withstanding Voltage: | 1000V |
| Bushing Style: | Threaded |
| Operating Temperature: | -30°C to +85°C |
| Dimension: | L 12.7mm x W 11.43mm x H 28.19mm |
| Mounting Method: | Panel Mount |
Features & Applications
With a continuously expanding product offering, E-Switch has built a reputation for total customer satisfaction. E-Switch emphasizes quality through efficiency, in both the design and manufacturing process, allowing for exceptional quality product at competitive prices.
The 100 series switch from E-Switch is a miniature, space saving toggle switch. This series is available with a wide range of configurations, including multiple actuator options, multiple poles available and a variety of switching functions.
The 100 series switch is ideal for a number of different applications and markets, including:
- Telecommunications
- Instrumentation
- Networking
- Medical Equipment
Series 100 Miniature Toggle Switches
The 100 Series miniature toggle switches offer numerous actuator options and termination options including right angle PC mount.
The 100DP1T1B1M1QEH is a mini DPDT On-None-On through hole toggle switch with a silver plated copper alloy contact material and is epoxy sealed at the base of the terminal.
Available Packaging
Package Qty:
96 per Bulk
Mounting Method:
Panel Mount
