TE Connectivity | 643412-1

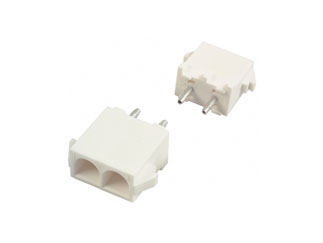

The 643412-1 is a 2 Position 19 A 600 V vertical mount MATE-N-LOK receptacle.

Features:

• Product Type Features:
• Product Type = Connector
• Product Line = Universal MATE-N-LOK
• Connector Type = Header
• Color = White
• Mount Angle = Vertical
• Mechanical Attachment:
• Mating Retention Type = Positive Lock
• Electrical Characteristics:
• Current Rating (A) = 19
• Voltage (VAC) = 600
• Termination Features:
• Termination Method = Solder
• Termination Post Length (mm [in]) = 4.45 [0.175]
• Solder Tail Contact Plating = Pre-Tin
• Body Features:
• Centerline (mm [in]) = 6.35 [0.250]
• Number of Positions = 2
• Contact Features:
• Contact Type = Socket
• Contact Layout = In-Line
• Contact Termination Type = Through Hole
• Contact Plating, Mating Area, Material = Pre-Tin
• Contact Base Material = Phosphor Bronze
• Housing Features:
• Connector Style = Receptacle
• Housing Material = Nylon
• UL Flammability Rating = UL 94V-0
