Référence fabricant
B14B-PASK(LF)(SN)

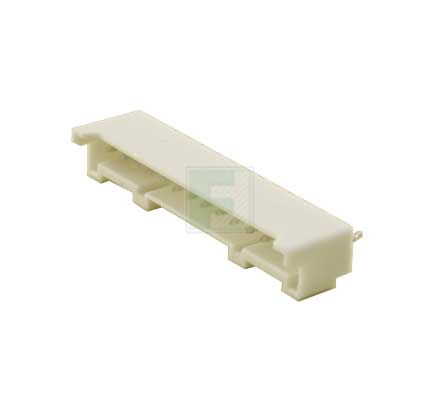

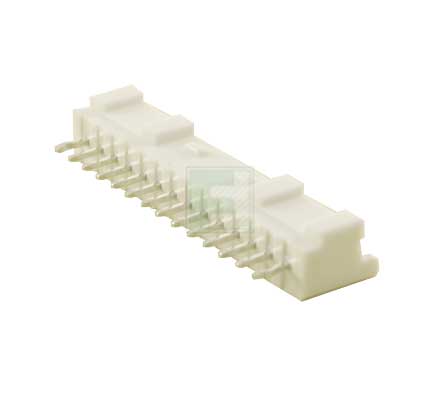

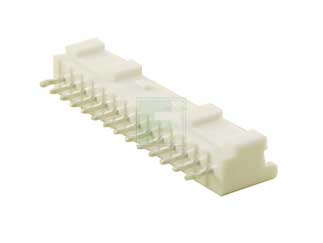

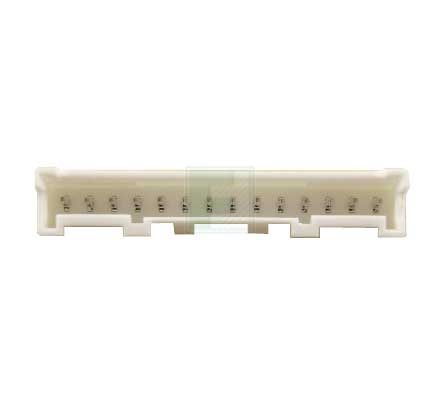

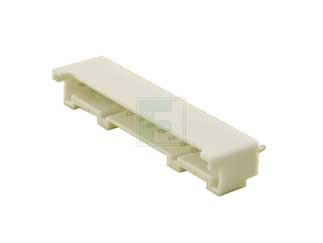

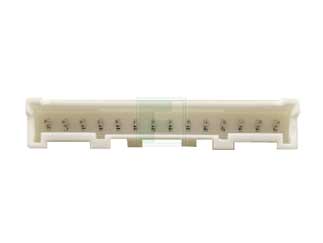

PA Series 14 Position 2 mm Pitch Top Entry No Boss Through Hole Shrouded Header
| | |||||||||||
| | |||||||||||
| Nom du fabricant: | JST | ||||||||||
| Emballage standard: | Product Variant Information section Emballages disponiblesQté d'emballage(s) :250 par Box Méthode de montage :Through Hole | ||||||||||
| Code de date: | 2316 | ||||||||||
JST B14B-PASK(LF)(SN) - Spécifications du produit
Informations de livraison:
ECCN:
Informations PCN:
Statut du produit:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=B14B-PASK(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/fr/p/6538045
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=B14B-PASK(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/fr/p/6538045
JST B14B-PASK(LF)(SN) - Caractéristiques techniques
| No of Positions: | 14 |
| Pitch: | 2 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Crimp |
| Operating Temp Range: | -25°C to +85°C |
| Voltage Rating: | 250V |
| Current Rating: | 3A |
| Contact Plating: | Tin |
| Material: | Polybutylene Terephthalate |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Wire to Board |
| Mating Type: | Locking Ramp |
| Color: | Natural |
| Insulation Resistance: | 1000MΩ |
| Méthode de montage : | Through Hole |
Fonctionnalités et applications
The PA,PAF,PAL series headers features compatibility with both crimp and IDC sockets. The housing has a locking device to prevent accidental disconnection, and a secondary retainer enhances safety in case of partial insertion. The header is compatible with the PAF, PAP and PARP housing series and the SPA and SPHD contacts.
The B14B-PASK(LF)(SN) is a fourteen (14) circuit, top entry, 2mm pitch, single row, throughole shrouded header without boss. The board mounting header is white, and male pin posts are copper alloy and tin plated and has a press fit termination type.
Emballages disponibles
Qté d'emballage(s) :
250 par Box
Méthode de montage :
Through Hole
