Manufacturer Part #
SML-LX0603YW-TR

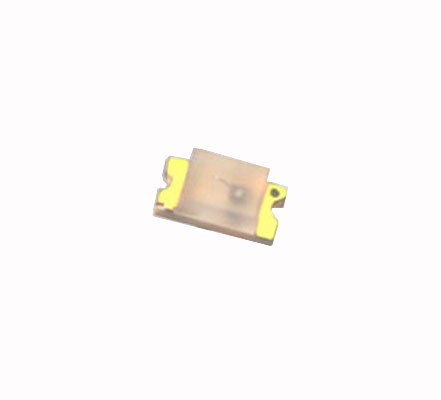

Yellow 0603 1.6 x 0.8 mm 160° Diffused 14 mcd 2.1 V PCB Chip Surface Mount LED
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Lumex | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:4000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2451 | ||||||||||
Product Specification Section
Lumex SML-LX0603YW-TR - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SML-LX0603YW-TR&field4=Lumex&field18=https://p1na.futureelectronics.com/p/7246465
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SML-LX0603YW-TR&field4=Lumex&field18=https://p1na.futureelectronics.com/p/7246465
Lumex SML-LX0603YW-TR - Technical Attributes
Attributes Table
| No of LEDs: | 1 |
| Color: | Yellow |
| Lens Type: | Diffused |
| Forward Voltage: | 2.1V |
| Forward (Drive) Current: | 20mA |
| Intensity: | 14mcd |
| Viewing Angle: | 160° |
| Wavelength: | 585nm |
| Rated Power: | 50mW |
| Operating Temp Range: | -25°C to +85°C |
| Storage Temperature Range: | -30°C to +85°C |
| Dimension: | H 0.6mm x L 1.6mm x W 0.8mm |
| Moisture Sensitivity Level: | 2 |
| Mounting Method: | Surface Mount |
Features & Applications
The SML-LX0603YW-TR is a Yellow 1.6 x 0.8 mm Half Moon Solder Terminal Diffused 14 mcd 2.1 Surface Mount PCB Chip LED.
Features:
- State-of-the-Art, High Brightness Chip Technology
- Choice of LED Colors and Lens FInishes
- Lead Frame / Lens Casting Reliability
- Easy-to-Solder Leads, Tin Finish
- Custom Solutions available
Applications:
- Industrial Controls
- Medical Eqiupment
- Communications Equipment
- Test and Measurement Equipment
- Security Electronics
- Life Safety Equipment
Parameters:
- Peak forward current - 150 mA
- Steady current - 30 mA
- Power dissipation - 50 mW
- Peak wavelength - 585nm
- Forward voltage - 2.1 to 2.5 V
- Reverse voltage - 5 V
Pricing Section
Global Stock:
8,000
USA:
8,000
Factory Lead Time:
N/A
Quantity
Unit Price
4,000
$0.0455
8,000
$0.0447
12,000
$0.0442
16,000+
$0.0436
Product Variant Information section
Available Packaging
Package Qty:
4000 per Reel
Mounting Method:
Surface Mount
