Manufacturer Part #
FDS3890

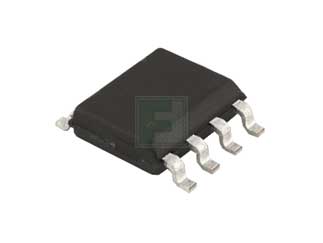

N-Channel 80 V 44 mOhm Surface Mount Dual PowerTrench Mosfet SOIC-8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Reel Package Style:SOIC-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
onsemi FDS3890 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=FDS3890&field4=onsemi&field18=https://p1na.futureelectronics.com/p/7454218
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=FDS3890&field4=onsemi&field18=https://p1na.futureelectronics.com/p/7454218
onsemi FDS3890 - Technical Attributes
| Fet Type: | N-Ch |
| No of Channels: | 2 |
| Drain-to-Source Voltage [Vdss]: | 80V |
| Drain-Source On Resistance-Max: | 44mΩ |
| Rated Power Dissipation: | 2W |
| Qg Gate Charge: | 25nC |
| Gate-Source Voltage-Max [Vgss]: | 20V |
| Drain Current: | 4.7A |
| Turn-on Delay Time: | 11ns |
| Turn-off Delay Time: | 26ns |
| Rise Time: | 8ns |
| Fall Time: | 12ns |
| Operating Temp Range: | -55°C to +175°C |
| Gate Source Threshold: | 2.3V |
| Technology: | PowerTrench |
| Input Capacitance: | 1180pF |
| Package Style: | SOIC-8 |
| Mounting Method: | Surface Mount |
Features & Applications
The FDS3890 is a 80 V 44 mΩ Dual N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.
These MOSFETs feature faster switching and lower gate charge than other MOSFETs with comparable RDS(ON) specifications. The result is a MOSFET that is easy and safer to drive (even at very high frequencies), and DC/DC power supply designs with higher overall efficiency.
Features:
- 4.7 A, 80 V
- RDS(on) = 44 mΩ@ VGS = 10 V
- RDS(on) = 50 mΩ @ VGS = 6 V
- Fast switching speed
- High performance trench technology for extremely low RDS(ON)
- High power and current handling capability
Applications:
- Consumer Appliances
- Home Audio System Components
- Medical Electronics/Devices
- Military & Civil Aerospace
Available Packaging
Package Qty:
2500 per Reel
Package Style:
SOIC-8
Mounting Method:
Surface Mount
