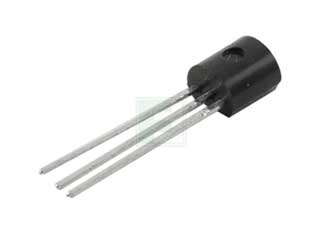

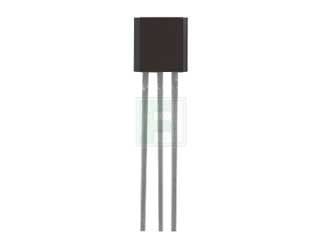

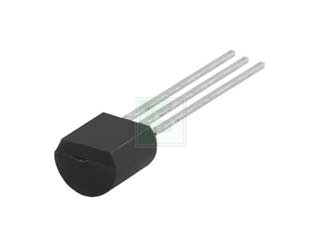

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

TL431AILPG

TL Series 2.495 V Through Hole Programmable Precision Reference - TO-92

TL431AILPG Datasheet TL431AILPG Documentation Package Drawings Simulation Model
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	onsemi
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 2000 per Bulk Package Style: TO-92 Mounting Method: Through Hole
Date Code:

onsemi TL431AILPG - Technical Attributes

Shunt Type:	Shunt
Output Type:	Adjustable
Accuracy:	±1%
Reference Voltage:	2.495V
Output Voltage:	2.47V to 36V
Output Impedance:	0.5Ω
Cathode Current:	1mA to 100mA
Power Dissipation:	0.7W
Operating Temp Range:	-40°C to +85°C
Package Style:	TO-92
Mounting Method:	Through Hole

Features & Applications

The TL431, A, B integrated circuits are three−terminal programmable shunt regulator diodes. These monolithic IC voltage references operate as a low temperature coefficient zener which is programmable from Vref to 36 V with two external resistors.

These devices exhibit a wide operating current range of 1.0 mA to 100 mA with a typical dynamic impedance of 0.22 Ω. The characteristics of these references make them excellent replacements for zener diodes in many applications such as digital voltmeters, power supplies, and op amp circuitry. The 2.5 V reference makes it convenient to obtain a stable reference from 5.0 V logic supplies, and since the TL431, A, B operates as a shunt regulator, it can be used as either a positive or negative voltage reference.

Key Features:

Programmable Output Voltage to 36 V
Voltage Reference Tolerance: ±0.4%, Typ @ 25°C (TL431B)
Low Dynamic Output Impedance, 0.22 Ω Typical
Sink Current Capability of 1.0 mA to 100 mA
Equivalent Full−Range Temperature Coefficient of 50 ppm/°C Typical
Temperature Compensated for Operation over Full Rated Operating Temperature Range
Low Output Noise Voltage
Pb−Free Packages are Available
