Manufacturer Part #

TSSF4500

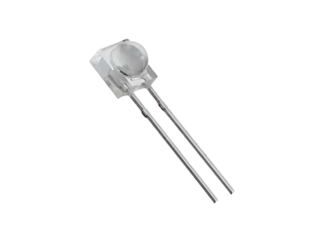

890 nm 100 mA ±22° Side View Through Hole High Speed Infrared Emitting Diode

TSSF4500 Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Vishay
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 4000 per Bag Mounting Method: Through Hole
Date Code:

Vishay TSSF4500 - Technical Attributes

Wavelength:	890nm
Angle of Half Intensity:	±22°
Intensity:	20mW/cm2
Forward (Drive) Current:	100mA
Forward Voltage:	1.35V
Mounting Method:	Through Hole

Features & Applications

The TSSF4500 is an infrared, 890 nm emitting diode in GaAlAs double hetero (DH) technology with high radiant power and high speed, molded in a clear, untinted plastic package. It has an Operating temperature ranges b/w -40 °C to 100 °C.

Features:

Package type: leaded
Package form: side view
Dimensions (L x W x H in mm): 4.5 x 4 x 4.8
Peak wavelength: λp = 890 nm
High reliability
High radiant power
High radiant intensity
Angle of half intensity: ? = ± 22°
Low forward voltage
Suitable for high pulse current operation
High modulation bandwidth: fc = 12 MHz
Good spectral matching with Si photodetectors

Applications:

Infrared high speed remote control and free air data transmission systems with high modulation frequencies or high data transmission rate requirements
TSSF4500 is ideal for the design of transmission systems according to IrDA requirements and for carrier frequency based systems (e.g. ASK/FSK - coded, 450 kHz or 1.3 MHz)
