Murata Power Solutions | TWR-5/3000-12/500-D12A-C

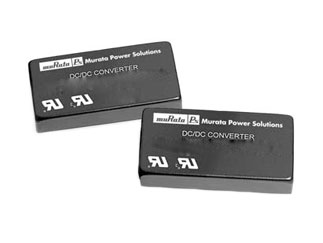

The TWR-5/3000-12/500-D12A-C is a part of PWR series DC/DC converters. Among the three families of triple-output DC/DC converters in DATEL’s new A-Series, the 8-11W, 2" x 1" devices stand out as the industry’s smallest full-featured triples. Housed in miniature 2" x 1" x 0.375", 5-side shielded, metal packages with electrically non-conductive coatings, these power converters offer non-latching output current limiting, input overvoltage shutdown (except D5A models), input reverse-polarity protection, and output overvoltage clamping to protect both the power converters and their loads.

As members of DATEL’s new A-Series, the 8-11 W triples feature both low cost and outstanding long-term reliability. Their design combines straightforward circuit topologies, the newest components, proven SMT-on-pcb construction methods, and highly repeatable automatic-assembly techniques. Their superior durability is substantiated by a rigorous in-house qualification program that includes HALT (Highly Accelerated Life Testing).

Features:

• The smallest, full-featured triples
• Low cost! Highly reliable!
• Proven SMT-on-pcb construction
• Qual tested; HALT tested; EMC tested
• Output voltages: +5 V/±12 V or +5 V/±15 V
• Four input voltage ranges:
  • 4.7-7 V, 9-18 V, 18-36 V or 36-72 V
• Small packages, 2" x 1" x 0.375"
• –40 to +100°C operating temperature
• Fully isolated, 1500 Vdc guaranteed
• Guaranteed efficiencies to 82%
• Designed to meet UL1950 and EN60950
• Modifications and customs for OEM’s
