Manufacturer Part #
929001789813

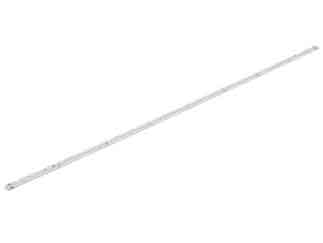

Fortimo LED Strip ST Variable Length 47.5in 8000lm LV5 3000K 90CRI 160lm/W
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Signify North America | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:120 per | ||||||||||
| Date Code: | |||||||||||
Signify North America 929001789813 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Subject: Phase Out and Replacement FO Strip ST LV5 Please be advised we will be phasing out our Fortimo Strip ST LV5 and offering a replacement. The Attached table shows impacted SKUS along with suggested replacements. The last order date for FO Strip ST LV5 will be 12/29/2023 to allow time for the transition.
LED Strip LV5 Improvements:Packaging Improvements (In production)? The box was changed from DC to RSC for increased protection? Corrugated Fillers were added at the end of the boards for spacing and padding*** 50+% increase in drop test performance***Segmentation Improvements (Q1?22)? Modification to breakable features to increase resistance to accidental separation? Currently undergoing extensive testing for performance verification? Production implementation planned in Q1?22Connector Improvement (Q1?22)? Changing connector to improve wire retention and connector retention.? Moving to connector currently used on LED Strip VO LV3? Production implementation in Q1?22
Part Status:
Signify North America 929001789813 - Technical Attributes
| Board Type: | 4ft Slim Board |
| Color: | Warm White |
| CCT: | 3000K |
| CRI: | 90 |
| Minimum Flux: | 6760lm |
| Typical Flux: | 7300lm |
| Nominal Current: | 1120mA |
| Maximum Current: | 2100mA |
| Typical Forward Voltage: | 39.6V |
| Test Temperature: | 45°C |
| Application 1: | General Lighting |
| Dimension: | 1205.8 x 20 mm |
Available Packaging
Package Qty:
120 per
