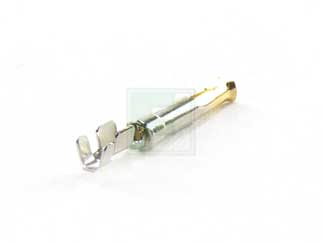

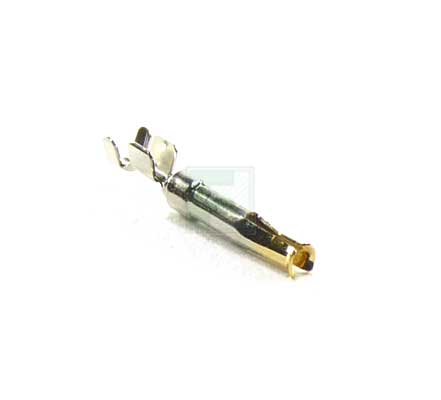

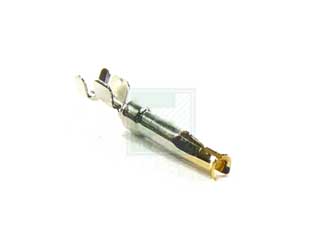

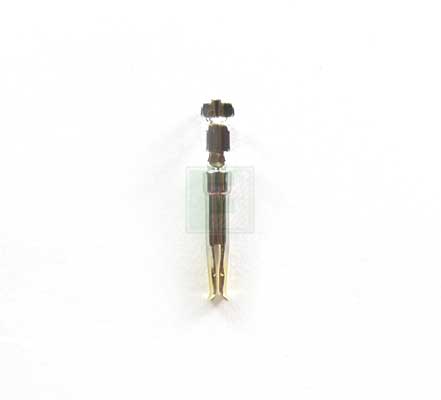

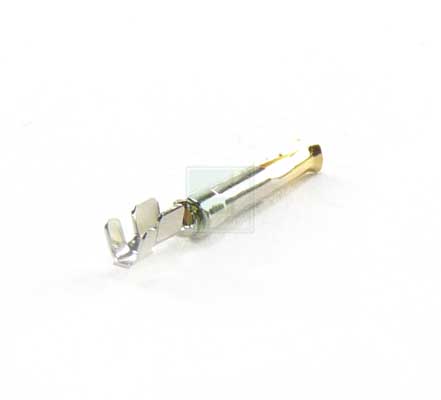

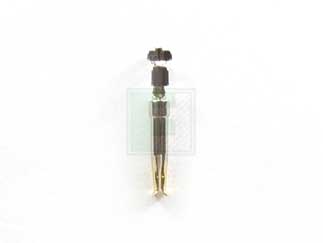

HARTING | 09670008277

Manufacturer Part #

09670008277

PCB Solder Series 20-24 AWG Crimp Stamped Female D-Sub Contact

ECAD Model:
Mfr. Name: HARTING
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
HARTING 09670008277 - Technical Attributes
Attributes Table
Type: Contact
Contact Termination: Crimp Terminal
Wire Gauge: AWG 20-24
Contact Material: Brass
Contact Plating: Gold
Mounting Method: Wire Mount
Features & Applications
The 09670008277 offers a wide range of interconnect solutions for Networking applications. The Harting series  has long been the defacto standard for Industrial Heavy Duty interconnect.

These equipment is subjected to harsh environmental conditions the HAN family of interconnect solutions should be at the top of your requirements.

Key Specfication:

  • Contact gender stamped female contacts
  • Wire gauge AWG 24-20; 0.5 - 0.56 mm²
  • Performance Class Performance Level 3
  • Packaging Individual contacts
  • Type R 23

Application:

  • Electrical and Electronics applications
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
5 Weeks
Minimum Order:
500
Multiple Of:
500
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$43.15
USD
Quantity
Unit Price
500
$0.0863
1,500
$0.0839
2,500
$0.0828
10,000
$0.0798
15,000+
$0.078
Product Variant Information section
Related Products

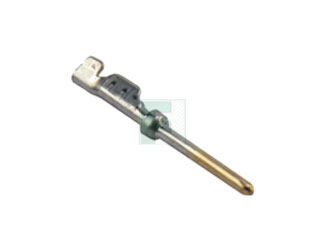

09560008177
