Bomar | 361V704EFT

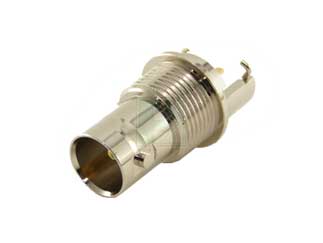

The 361V704EFT is a part of V-Bite series BNC style connectors are miniature, light-weight, weatherproof interconnecting devices characterized by their two-stud, quick disconnect bayonet lock coupling arrangement.

Their design functions satisfactorily from DC to 11 GHz in static applications, or from DC to 4 GHz in applications involving vibration. The connectors typically yield a low VSWR (reflected signal) to 4 GHz. BNCs are available in an extensive variety of configurations and cable sizes and are impedance matched to either 50 Ω or 75 Ω.

Specifications:

• Connector Body and Parts: Brass
• Male Contact Pin: Brass
• Commercial Grade: Zinc Alloy/Brass
• Outer Contact: Brass
• Socket Contact: Beryllium Copper
• Crimp Ferrule:Annealed Copper
• Insulators, Standard Versions: Teflon
• Rubber Gaskets: Silicone Rubber
• Plating: Nickel (Silver Optional)
• Impedance 50 Ω 75 Ω
• Frequency Range 0-4 GHz 0-1 GHz
• VSWR: 1.30 Max.
• RF Insertion Loss: 0.2 db Min. at 3 GHz
• RF Leakage: -55 db Min. at 3 GHz
• Test Voltage:1500 V rms
• Working Voltage:500 V rms
• Insulation Resistance 5000 Meg ohms Min. MIL-STD-202
• Contact Resistance 3 Milli ohms Max

Applications:

• Radio telecommunications
• Broadcast equipment
• Medical equipment
• Computer
• Precision Video
• High definition studio broadcast
• Video switching and test instrumentation
