Manufacturer Part #
R1S-3.33.3

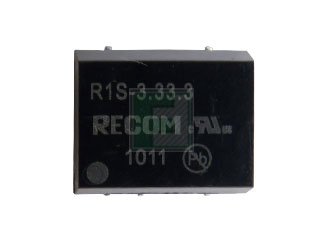

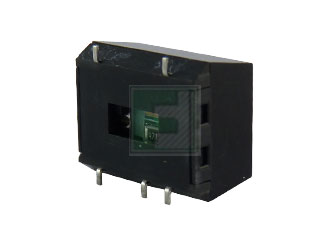

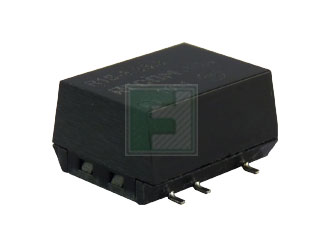

R1S Series 1 W Single Output 3.3 V DC/DC Converter Power Supply
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | RECOM | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:40 per Tube Mounting Method:Surface Mount |
||||||||||
| Date Code: | 2549 | ||||||||||
RECOM R1S-3.33.3 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=R1S-3.33.3&field4=RECOM&field18=https://p1na.futureelectronics.com/p/9745985
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=R1S-3.33.3&field4=RECOM&field18=https://p1na.futureelectronics.com/p/9745985
RECOM R1S-3.33.3 - Technical Attributes
| Type: | Encapsulated |
| Isolation: | Isolated |
| No of Outputs: | Single |
| Output Power: | 1W |
| Output Voltage: | 3.3V |
| Input Voltage: | 3.3V |
| Mounting Method: | Surface Mount |
Features & Applications
The R1S-3.33.3 is a part of R1S series DC/DC Converter. It has an operating temperature ranging from -40°C to +100°C.
The R1S converters are of the enclosed open frame type, i.e. they are not potted. The converters are typically used in general purpose and industrial low power isolation and voltage matching applications where an SMD converter is required. The converter series feature an extended ambient temperature operating range of -40°C ~ +100°C without derating and optional continuous short circuit protection.
Features:
- Fully RoHS 6/6 Conform
- Full Power at 100°C Ambient Temperature
- 1kVDC or 3kVDC Isolation Options
- UL /CSA Certified, CB Report
- Suitable for Fully Automated Assembly (including Vapour Phase Soldering)
- Optional Continuous Short Circuit Protection
- Efficiency to 84%
Available Packaging
Package Qty:
40 per Tube
Mounting Method:
Surface Mount
